MAX3221E: ESD protection at except bus ports

user5163865

Part Number: MAX3221E
Other Parts Discussed in Thread: MAX3221

Hi,

Customers are considering change from MAX3221 to MAX3221E.

I understand that the E version is an ESD enhanced product, but according to the DS

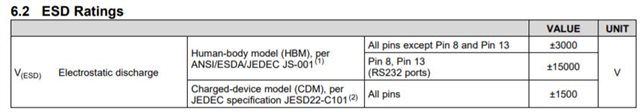

MAX3221

MAX3221E

MAX3221E is inferior except for the bus terminal.
(MAX3221E: 2000V　All other PIN）？？

Since all TRS brand products are 3000V, is this description a typo?

Best regards,
Hiroshi

over 4 years ago

0 user5163865 over 4 years ago

Genius 3980 points

Hi,

I'm sorry if I sound picky. I just want to be sure.

MAX3221E's "Pin8 and Pin11"-> "Pin8 and Pin13", right?

Best regards,

Hiroshi

0 Hao L over 4 years ago in reply to user5163865

TI__Mastermind 25705 points

Hiroshi,

You're correct - Pin 11 is a typo in the MAX3221E's datasheet. About the HBM rating 'degrading', it looks like MAX3221 was released before TI made the mind on the HBM rating - 2000V was proved to be enough for the manufacturing environment and became the typical rating for logic pins.
