DP83TC812S-Q1: GND_ESC function

Sherry Liang

Part Number: DP83TC812S-Q1

Dear team,

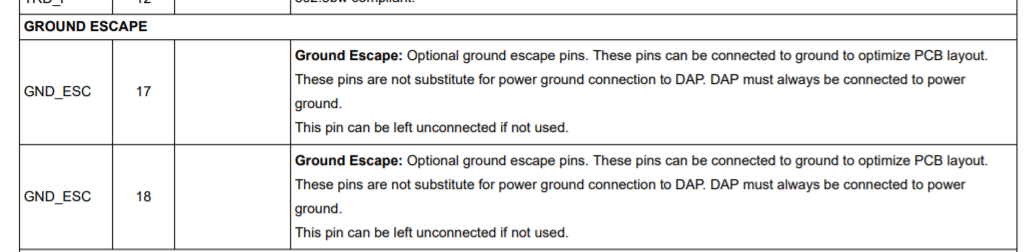

Could you please tell me what our recommendation is for pin17&pin18? The datasheet said that connecting these two pins will optimize PCB layout. I want to know why this operation will optimize PCB layout? We have two options for this connection, connecting to ground or left unconnected. In which scenario, we recommend connecting to ground? In which scenario, we recommend being left unconnected?

Thanks & Best Regards,

Sherry

over 4 years ago

0 Nikhil Menon over 4 years ago

TI__Genius 11725 points

Hi Sherry,

We are looking into this question and will be able to provide feedback by Thursday latest.

Thank you,

Nikhil

All information in this correspondence and in any related correspondence is provided “as is” and “with all faults”, and it is subject to TI’s Important Notice (http://www.ti.com/corp/docs/legal/important-notice.shtml).

0 Nikhil Menon over 4 years ago in reply to Nikhil Menon

TI__Genius 11725 points

Hi Sherry,

The GND_ESC pins are simply a flexibility option to offer a clear path the GND on the top layer directly to the DAP of the PHY. This allows a path for a GND plane to reach the DAP from outside of the PHY. This is an optional connection and can be left NC.

Thank you,

Nikhil
