TUSB4020BI: way to connect the BATEN pin

Yuta Nishie

Part Number: TUSB4020BI

Hi,

In the following post, I told you that the voltage of USB_DP_DN1 rises due to the influence of BATEN.

https://e2e.ti.com/support/interface-group/interface/f/interface-forum/1043553/tusb4020bi-usb_dp_dn1-output-voltage/3859695

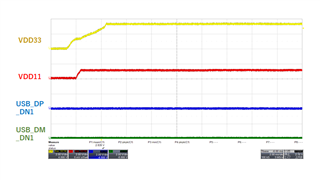

If you remove pull-up resistor for the BATEN , USB_DP_DN1 will not rise.(see the figure below)
What is the correct way to connect the BATEN pin? (Pull-up or pull-down, NC).

Best Regards,

Nishie

over 3 years ago

0 Brian Zhou over 3 years ago

TI__Guru*** 146505 points

If you need BATEN enabled , it should be pulled up to 3.3v.

If not, just NC. there is PD inside.

How do you connected BATEN, can you send schematic?

Regards,

Brian

0 Yuta Nishie over 3 years ago in reply to Brian Zhou

Genius 5015 points

Hi Brian,

Because I want to send the schematic, is it possible to send it by private mail?

Best Regards,

Nishie

0 Brian Zhou over 3 years ago in reply to Yuta Nishie

TI__Guru*** 146505 points

pls accept my friendship request and send schematic with private message

+1 JMMN over 3 years ago in reply to Brian Zhou

TI__Guru 60870 points

Closing, resolving this ticket in another thread.
