DP83822H: Difference Software configuration between DP83822 and DP83848

Zoe Yang

Part Number: DP83822H
Other Parts Discussed in Thread: DP83822I

Dear expert:

The client on my side has some trouble when debugging phy device DP83822. The software is initialized successfully, the computer shows that the network cable is connected, but unable to mount successfully.

The main platform they use is NXP’s I.MX RT1064. And they formerly used DP83848 and now replaced it by DP83822.The attached file is the schematic circuit customer designed of DP83822 referring to our reference design.

Could you please kindly give some advice on:

Is the hardware circuit configuration correct?
Is there any difference between DP83848 and DP83822 in the software configuration?

This would be great help, thank you!

over 3 years ago

0 Kallikuppa Sreenivasa over 3 years ago

TI__Guru**** 189949 points

Hello Zoe Yang

hank you for the message.

Couple of questions

The previous version of the board ad a DP83848 and that board is working. Which device did they use?

The updated version has a DP83822 and this does not work.

Can i assume that the required drivers have been changed to take care of the device change.

Regards,

Sreenivasa,

0 Kallikuppa Sreenivasa over 3 years ago in reply to Kallikuppa Sreenivasa

TI__Guru**** 189949 points

Hello Zoe Yang

Do you have some update.

Can you ask customer to share the schematics for both version to compare, if possible the MAC interface.

Regards,

Sreenivasa

0 Kallikuppa Sreenivasa over 3 years ago in reply to Kallikuppa Sreenivasa

TI__Guru**** 189949 points

Hello Zoe Yang

Please note that i will need schematics for both DP83822 and DP83848.

Regards,

Sreenivasa

0 Kallikuppa Sreenivasa over 3 years ago in reply to Kallikuppa Sreenivasa

TI__Guru**** 189949 points

Hello Zoe Yang

Thanks. I will provide additional inputs over email.

Regards,

Sreenivasa

0 Zoe Yang over 3 years ago in reply to Kallikuppa Sreenivasa

TI__Intellectual 2210 points

Thanks Sreenivasa, I have emailed you customer schematic of DP83848 just now, Please help to evaluate. Then please tell which specific part of software configuration may they change?

0 Kallikuppa Sreenivasa over 3 years ago in reply to Zoe Yang

TI__Guru**** 189949 points

Hello Zoe Yang

Noted.

Regards,

Sreenivasa

+1 Kallikuppa Sreenivasa over 3 years ago in reply to Kallikuppa Sreenivasa

TI__Guru**** 189949 points

Hello Zoe Yang

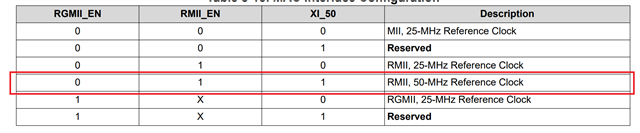

Based on the schematics, looks like customer is configuring RMII, 50 MHz

Please request customer to do the below

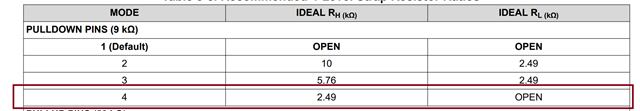

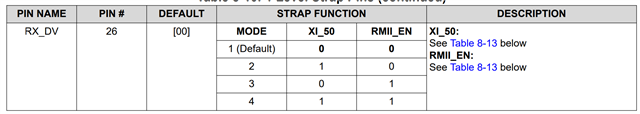

RX_DV configuration for RMII 50 MHz mode

Please Remove R360 , mount R388 2K9

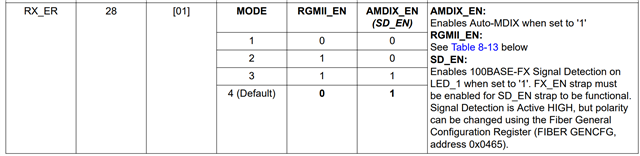

RX_ER for RMII 50 MHz mode

Please Remove R390

Please read the below registers and check the configuration

0x0017 RMII and Status Register (RCSR)

0x0467 Strap Latch-In Register #1 (SOR1)

Regards,

Sreenivasa

0 Zoe Yang over 3 years ago in reply to Kallikuppa Sreenivasa

TI__Intellectual 2210 points

Thank you for your answers! I will check with customer if this could help them solve the problem!

0 Kallikuppa Sreenivasa over 3 years ago in reply to Zoe Yang

TI__Guru**** 189949 points

Hello Zoe Yang

Thank you. I have a few additional observations and will send email.

Regards,

Sreenivasa

0 Kallikuppa Sreenivasa over 3 years ago in reply to Kallikuppa Sreenivasa

TI__Guru**** 189949 points

Hello Zoe Yang

Thank you for the mail. I understand this issue is resolved by changing the DP83822i configuration. If you do not have any other questions, please click resolved to close the thread.
