TDP158: Layout inquiry

Kelvin Tee

Genius 10035 points

Part Number: TDP158
Other Parts Discussed in Thread: HD3SS3412

Customer is studying TDP158RSB for HDMI 2.0

Coud you help to support the layout inquiries below

1) Max trace length into redriver, out of redriver

2) Recommended trace impedance

3) Recommended placement of redriver (nearer to connector or nearer to CPU?)

Rgds
Kelvin

+1 David (ASIC) Liu over 3 years ago

Kelvin

1) Max trace length into redriver, out of redriver

You can use section 9.2.3 Application Curves as a guideline, the input trace length is 20in. So I would drive it less than 20in.

For the output, the trace length is 1 to 2in to the connector.

2) Recommended trace impedance

100ohm +/-10%.

3) Recommended placement of redriver (nearer to connector or nearer to CPU?)

Near the connector

Thanks

David

0 Kelvin Tee over 3 years ago in reply to David (ASIC) Liu

Hi David

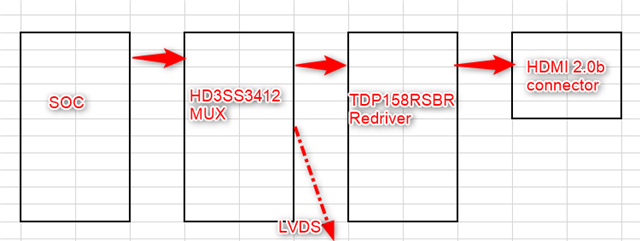

Thanks for the advise. Does the arrangement below work for HDMI 2.0b ?

The path with HD3SS3412 Mux.

Rgds
Kelvin

0 David (ASIC) Liu over 3 years ago in reply to Kelvin Tee

Kelvin

The HD3SS3412 common mode voltage is from 0 to 2V, please double check and make sure the SOC common mode voltage meets this requirement.

Thanks

David
