HD3SS213: SEL logic and ac coupling cap question

Ann_Lien

Genius 15420 points

Part Number: HD3SS213
Other Parts Discussed in Thread: HD3SS214

Hello expert,

My customer has two questions on HD3SS213.

1. Does data path is follow DX_SEL? Since we only see DDC and AUX are changed in table7-1.

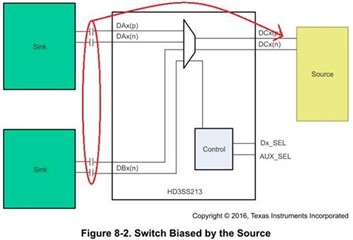

2. Could I put the AC coupling cap in source side ?

Best regards,

Ann Lien

over 4 years ago

0 David (ASIC) Liu over 4 years ago

TI__Guru**** 183481 points

Ann

1. I am not sure if I understand the particular question, the HD3SS213 AUX/DDC bus is controlled by the AUX_SEL and DX_SEL.

2. You can move the AC coupling capacitor to the other side and leave the other side to be DC coupled.

Thanks

David

0 Ann_Lien over 4 years ago in reply to David (ASIC) Liu

TI__Genius 15420 points

Hello David,

Thanks for your reply! For the first question, we would like to double check if data path is follow Dx_SEL also. Since we can see HD3SS214 datasheet table 7-1 for DA/DB/DC data path. But we cannot see data path truth table in HD3SS213 table 7-1. Thanks!

Best regards,

Ann Lien

+1 David (ASIC) Liu over 4 years ago in reply to Ann_Lien

TI__Guru**** 183481 points

Ann

The data path follows the DX_SEL, DX_SEL = L -> DA and DX_SEL = H -> DB.

Thanks

David
