SN65HVD1176: Pull-up resistor on Received Data (R) pin

Alessio Caligiuri1
Prodigy 220 points
Part Number: SN65HVD1176
Other Parts Discussed in Thread: PROFIBUS, ISO7721

Hello,

I'm designing an isolated PROFIBUS interface, and I would like to use the transceiver SN65HVD1176 + other external optocouplers (for example, ISO7721 for TX and RX on logic side).

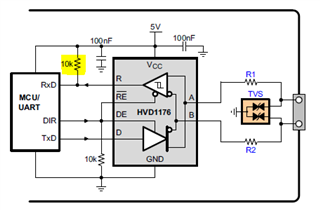

In the datasheet, I've found this application schematic, where a pull-up resistor on the "R" line is present. What is the purpose of this 10k resistor?

Thanks,

Alessio
