DS90UB940-Q1: HDMI to MIPI CSI-1

yutai li

Intellectual 625 points

Part Number: DS90UB940-Q1
Other Parts Discussed in Thread: DS90UB940N-Q1

Hi TI Support Team

I have a query about the FPDLINK can translate HDMI serializer to MIPI CSI-2 deserializer.

Because FPDLINK SERDES only convert HDMI to FPDLINK, that means FPDLINK use HDMI format from serializer side.

When DS90UB940, receive FPDLINK signal how to convert the HDMI format to CSI format ?

Thanks

Yutai

over 3 years ago

0 yutai li over 3 years ago

Intellectual 625 points

One more query: I want to know if TI have FPDLINK chip support HDMI or DP output, that means it can directly to used for monitor

Thanks

Yutai

0 Ben Dattilo over 3 years ago in reply to yutai li

TI__Mastermind 25765 points

Hi Yutai,

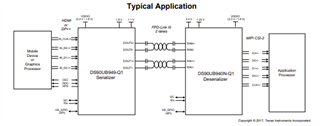

The DS90UB949 serializes an HDMI input and transmits this data over FPD-Link to a deserializer. The DS90UB940N-Q1 receives this data and deserializes it into MIPI CSI-2 format. Here is a diagram showing how this would look:

The 940N has supports several data types on the CSI-2 Tx. See below:

We do not currently have any publicly available devices that support DP (or HDMI) output.

Reagrds,

Ben

0 yutai li over 3 years ago in reply to Ben Dattilo

Intellectual 625 points

Hi Ben

Do you have any plan to development the one DP/HDMI output FPDLINK serdes.

Thanks

Yutai

0 Ben Dattilo over 3 years ago in reply to yutai li

TI__Mastermind 25765 points

Hi Yutai,

FPD-Link roadmap parts cannot be shared on the public forum. Please reach out to your local TI sales for that information.

Regards,

Ben

0 yutai li over 3 years ago in reply to Ben Dattilo

Intellectual 625 points

Got it thanks
