SN65HVD1781: SCH review

HY yang

Expert 1980 points

Part Number: SN65HVD1781

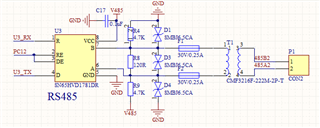

Please check whether the schematic diagram is correct?

0 Clemens Ladisch over 3 years ago

Guru 316690 points

The CMF3216F is not a transformer but a common-mode choke. Connect pins 1/3 to the transceiver, and 2/4 to the connector.

+1 Hao L over 3 years ago in reply to Clemens Ladisch

If there is no case ESD strikes between A and B in applications, D3 can be spared.
