TUSB1002A: AMI model

Mohammad Azadifar

Part Number: TUSB1002A

Hi,

I am trying to use the ibis/AMI model provided using another EDA tool rather than ADS.

I use CST schematic tool. When I import in CST, I dont get an ibis block with 2 input and output.
Shall I use two blocks separately?

If yes what shall I put as ctrl and enable?

Many thanks and best,

Mohammad

over 3 years ago

0 Malik Barton57 over 3 years ago

TI__Guru 64326 points

Hi Mohammad,

IBIS AMI model only shows the device performance when the redriver is already active there is not need for CTRL and enable.

+1 Mohammad Azadifar over 3 years ago in reply to Malik Barton57

Prodigy 30 points

Hi Malik,

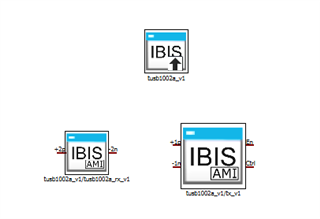

Thanks for your response. So I need to leave them open. shall I use two blocks as shown in the photo to represent one device?

I can see that in the ADS implementation it is not the case.

Regards,

0 Malik Barton57 over 3 years ago in reply to Mohammad Azadifar

TI__Guru 64326 points

Hi,

In ADS there is a symbol for redriver AMI components that handles passing the input at the RX pins to the output at the TX pins. In ADS the model is considered on device. In you software you will need to run to separate simulations, one of input and one for output.
