DS90UB924-Q1: EVM board confirmation

Kailyn Chen
Genius 9560 points

Part Number: DS90UB924-Q1

Hello,

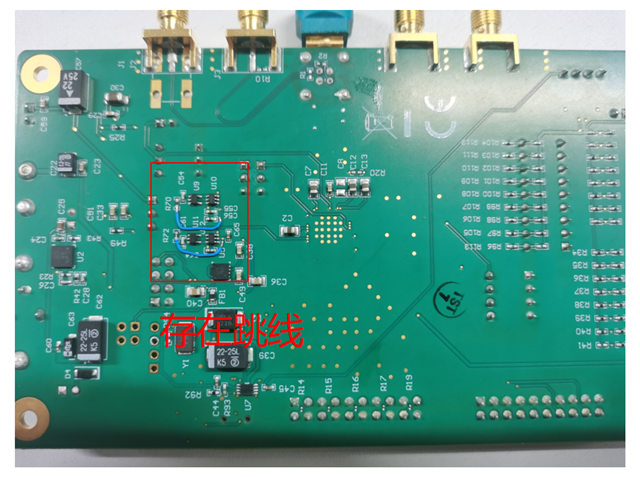

Our customer bought the DS90UB924-Q1EVM board  from TI website and found that there is jumper wire as the below picture, but it is different with the DS90UB924-Q1EVM User's Guide. Is it normal? Is there any update of the EVM? I didn't find the revision history of the datasheet. Please help to confirm.

In addition, the  layout are also different between the datasheet and ordered board.

              datasheet layout                                                                              ordered board layout

Best regards

Kailyn
