HI TEAM,

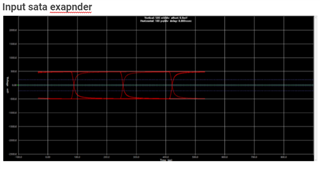

I have some doubt related to the eye diagram of SATA 6G Expander, In this I am not able to verify my result, correct or not.
I have made a connection between (sata expander(1) ->redriver(DS125BR820)(2) ->sata expander (3)) .
Can you provide the actual value of the following that are given below-
1.voltage swing of sata expander 6G(Gen3)
2.common mode voltage of sata expander 6g

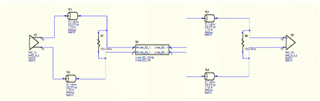

circuit diagram
Thanks & Regards
sandeep
