DS90UB948-Q1: How to config vertical color bars in 948

Joey Jin

Intellectual 2920 points

Part Number: DS90UB948-Q1
Other Parts Discussed in Thread: ALP

Hi,team,

As <Exploring the int test pattern generation feature of FPD-Link III> shows:

Could you tell how to config 948 output vertical color bars?

over 3 years ago

0 Shu Huang over 3 years ago

TI__Mastermind 18046 points

Hi Joey,

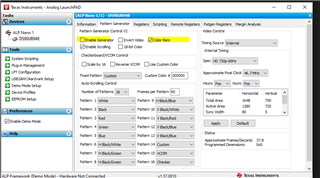

The Vertical Color Bars can be configured in ALP through the Pattern Generator tab shown like the image below. Alternatively, it can also be enabled in the PGCTL register 0x64, bit 2 PATGEN_COLOR_BARS.

Best,

Shu

0 Joey Jin over 3 years ago in reply to Shu Huang

TI__Intellectual 2920 points

Hi， Shu

Got it ,

BTW, could 948 generate horizonal Color bar?

0 Shu Huang over 3 years ago in reply to Joey Jin

TI__Mastermind 18046 points

Hi Joey,

The 948 does not support horizontal color bar.

Best,

Shu
