DS90UB947-Q1: Searching TI solution

Kygo Cheng

Expert 6830 points

Part Number: DS90UB947-Q1
Other Parts Discussed in Thread: TDA2

Hi Team,

There is a good new that we could DIN TI product!

Customer is looking for our SerDes solution .

1. Please help suggest TI solution, THX

2. DS90UB947-Q1 & 948 is good solution?

Please refer to below spec:

(1) SOC is our TDA2

(2)Customer screen spec as below

over 3 years ago

0 Logan Cummins over 3 years ago

TI__Guru 66820 points

Hi Kygo,

Thanks for reaching out. What exactly is the question here? Are you asking if the 947/948 can support dual OLDI (based on the snapshot)? Which side is customer designing? SER side?

Regards,

Logan

0 Kygo Cheng over 3 years ago in reply to Logan Cummins

TI__Expert 6830 points

Hi Logan

1. Yes , customer is looking for serializer side

2. Can DS90UB947 meet the specs above ?If not, please recommend our suggested solution ,THX

0 Logan Cummins over 3 years ago in reply to Kygo Cheng

TI__Guru 66820 points

Hi Kygo,

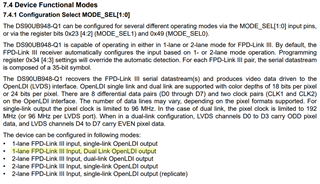

Yes, 947 does Dual OLDI.

Regards,

Logan

0 Kygo Cheng over 3 years ago in reply to Logan Cummins

TI__Expert 6830 points

Hi Logan

Thank you!

Client wish to use TDA2Sax to design side mirror project,

Client need confirm SoC to monitor FPD Link solution,

Monitor is dual LVDS interface(1920x720), Client think DS90UB948 can use, but Client cannot view any TDA2x side serializer IC can use,

It seems to need to go through two transfer ICs to do it,

1.Do TI have TDA2 side (RGB) to FPD LINK solution directly?

2.The second question, FPD LINK requires one or two pairs for transmission?

+1 Logan Cummins over 3 years ago in reply to Kygo Cheng

TI__Guru 66820 points

Hi Kygo,

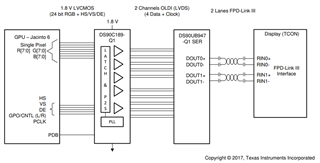

Is customer stuck with using the RGB output, does TDA2 have any other output interfaces? From FPD-Link side, we do not have an RGB Serializer able to do 1920x1080p over two lane FPD-Link.

Kygo Cheng said:
2.The second question, FPD LINK requires one or two pairs for transmission?

This depends on the PCLK of the display. FPD-Link rate is 35xPCLK rate. If PCLK is low enough, it can be sent over single FPD-Link III lane while staying under max FPD-Link rate; otherwise dual FPD-Link III mode is required, where total PCLK is divided by two and sent over each lane.

In case of 1920x1080p, 2 lanes are required.

Regards,

Logan

0 JackieChen over 3 years ago in reply to Logan Cummins

Prodigy 60 points

Hello Logan,

If our monitor resolution is 1920x720, do we need two pairs of FPD Link connections?

0 Logan Cummins over 3 years ago in reply to JackieChen

TI__Guru 66820 points

Hi Jackie,

Logan Cummins said:
This depends on the PCLK of the display. FPD-Link rate is 35xPCLK rate. If PCLK is low enough, it can be sent over single FPD-Link III lane while staying under max FPD-Link rate; otherwise dual FPD-Link III mode is required, where total PCLK is divided by two and sent over each lane.

In case of 1920x1080p, 2 lanes are required.

If display is less than 96MHz then single lane can be used.

Regards,

Logan

0 JackieChen over 3 years ago in reply to Logan Cummins

Prodigy 60 points

Understand, thank you~
