USB4 Refer design Solutions (JHL8140+tps65988)

I have the GORILLA CREEK TI REV2V2 Final reference design.

Now do Intel's JHL8140+tps6598 USB4 DOCK.

Is there a reference design solution?

over 3 years ago

0 Prem Vadapalli over 3 years ago

TI__Intellectual 1005 points

Colin You already seem to have the Gorilla Greek reference design. Can you clarirfy reference design doslution? are you looking for the FW and GUI?

0 Taylor Vogt over 3 years ago

TI__Genius 17370 points

Colin,

This question was already asked and answered here: https://e2echina.ti.com/support/interface/f/interface-forum/218474/tps65988dj-tps65988

Please reach out to Intel if there is further confusion on this reference design.

Regards,

Taylor

0 colin colin over 3 years ago in reply to Prem Vadapalli

Prodigy 20 points

Gorilla Greek reference design is selfpower design. I want to change to buspower mode? Directly delete the DC IN circuit? Then connect VBUS to the relevant part of DCIN. please help me. thanks.

0 colin colin over 3 years ago in reply to colin colin

Prodigy 20 points

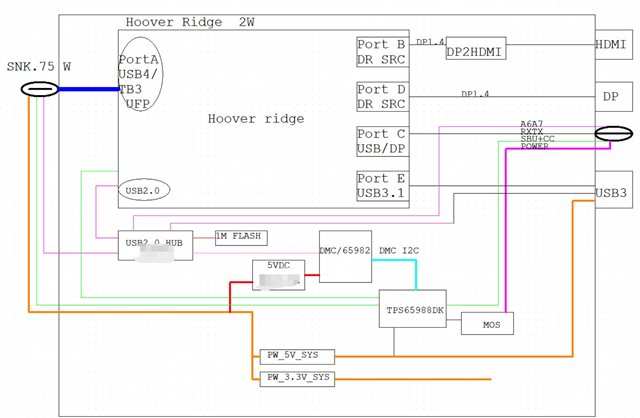

My design block diagram:

0 colin colin over 3 years ago in reply to colin colin

Prodigy 20 points

Hi
How to design? I want to do a buspower design. Is there a reference design?

0 Taylor Vogt over 3 years ago in reply to colin colin

TI__Genius 17370 points

Colin,

The information related to reference designs was in the linked response above. For USB4 designs we recommend following the intel reference design as is otherwise you may reach out to them for other designs they may have.

Regards,

Taylor

0 colin colin over 3 years ago in reply to Taylor Vogt

Prodigy 20 points

Hi Taylor Vogt

Intel only has U4 block diagram. It is Hoover radge+cypress(CYPD5225+CYPD3177)

0 Taylor Vogt over 3 years ago in reply to colin colin

TI__Genius 17370 points

Colin,

If you want bus powered, you would need to follow our datasheet guidelines for dead battery mode, but please understand this is not in a reference design so you would be taking a risk not following the reference designs referenced above so it would not be the preferred method. It sounds like you already have access to the intel designs above so that is the extent of the references we have available to you.

Regards,

Taylor

0 colin colin over 3 years ago in reply to Taylor Vogt

Prodigy 20 points

Hi Taylor

I will send the schematic diagram to your email, do you help me review it? I also sent it to Intel to help me review this BUSPOWER mode

+1 Taylor Vogt over 3 years ago in reply to colin colin

TI__Genius 17370 points

Colin,

Please open a new E2E thread for a separate schematic review as this is expanding beyond the initial question and that way it will go to the right engineer that may help with this.

Regards,

Taylor
