DS90UB935-Q1: 935patgen

Roy Chou1

Part Number: DS90UB935-Q1
Other Parts Discussed in Thread: ALP

Hi Team,

Do we have APP note like https://www.ti.com/lit/an/snla132g/snla132g.pdf?ts=1649940059664&ref_url=https%253A%252F%252Fwww.ti.com%252Fsitesearch%252Fen-us%252Fdocs%252Funiversalsearch.tsp%253FlangPref%253Den-US%2526searchTerm%253DSNLA132%2526nr%253D39

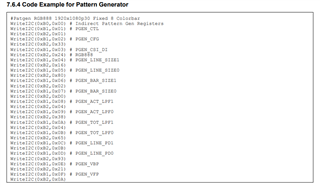

I saw the code example, but I'm not sure the detailed comments. If we want to set frame rate = 60, which part should we need to modify?

Regards,

Roy

over 3 years ago

0 Casey McCrea over 3 years ago

TI__Guru** 103215 points

Hello Roy,

I would suggest to use ALP to help generate these PATGEN configs. ALP has a tab for PATGEN in the latest version which allows you to graphically enter your desired config and generate the reg output

Best Regards,

Casey

0 Roy Chou1 over 3 years ago in reply to Casey McCrea

TI__Genius 16110 points

Hi Casey,

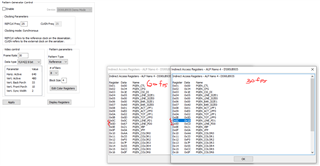

Yes, I'm trying to use ALP to see the difference, but I'm not sure why the register is setting like this.

Regards,

Roy

0 Casey McCrea over 3 years ago in reply to Roy Chou1

TI__Guru** 103215 points

Roy,

The frame rate is set by the total number of lines per frame, and the line period:

Line Period = 1/(FPD*Lines)

Example:

Total lines = 480 + 33 + 10 + 2 = 525

FPS = 30

Line Period = 63.49us

Best Regards,

Casey

0 Roy Chou1 over 3 years ago in reply to Casey McCrea

TI__Genius 16110 points

Thank you!
