DS90UB954-Q1: test pattern generation

Suhas G Belavigi

Prodigy 130 points

Part Number: DS90UB954-Q1
Other Parts Discussed in Thread: USB2ANY

Hi ,

Can I please get values of patgen registers to program into the 954 for

RAW12, 1944x1204 , 60fps

over 3 years ago

+1 Logan Cummins over 3 years ago

TI__Guru 66840 points

Hi Suhas,

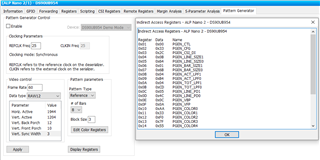

The 954's Analog LaunchPAD Pattern Generator Tab can be used to program PatGen registers directly if 954 is hooked up via USB2ANY/Ardvark. Otherwise, it can still be used to generate register values by programming your settings into the fields and hitting Display Registers, as shown below:

https://www.ti.com/tool/ALP

Regards,

Logan
