TDP142: DP1.2 test fail

GARETH OU

Part Number: TDP142

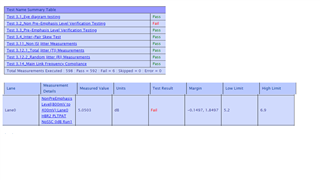

Customer test DP1.2 , it is Intel TGL H direct output, but the test fails Would like to ask if there is a suggested solution IC and possible causes of this issue Fail in Test 3.2_Non Pre-Emphasis Level Verification Testing (NonPreEmphasis Level(800mV to 400mV): HBR2 PLTPAT NoSSC 0dB Run1) 1. Since Eye-diagram is PASS, what is the possible reason for this problem? 2. Is there any suggested solution for this problem?

over 3 years ago

0 David (ASIC) Liu over 3 years ago

TI__Guru**** 177926 points

Hi,

Please update the Tektronix compliance SW first as the non-pre emphasis is now only applied to the HBR and RBR data rate in the latest DP1.4 CTS spec.

Thanks

David

0 GARETH OU over 3 years ago in reply to David (ASIC) Liu

Guru 11475 points

Hi David

Thank you for your reply

Customer is testing DP1.2 Is there a change to the DP1.2 SPEC?

0 David (ASIC) Liu over 3 years ago in reply to GARETH OU

TI__Guru**** 177926 points

Hi,

They still need to update the compliance SW as the DP1.4 spec now supersedes the DP1.2 spec.

Thanks

David

0 GARETH OU over 3 years ago in reply to David (ASIC) Liu

Guru 11475 points

Hi David

This measurement project even adds a Re-timer or Re-driver didn't help either?

Thanks

0 David (ASIC) Liu over 3 years ago in reply to GARETH OU

TI__Guru**** 177926 points

Hi,

They will have to increase the source 800mV signal amplitude voltage to pass this test. But the non-pre emphasis is now only applied to the HBR and RBR data rate, so this test really does not apply to the HBR2 data rate anymore.

Thanks

David
