TUSB212: Schematic review

Jeff YANG

Part Number: TUSB212

Hi,

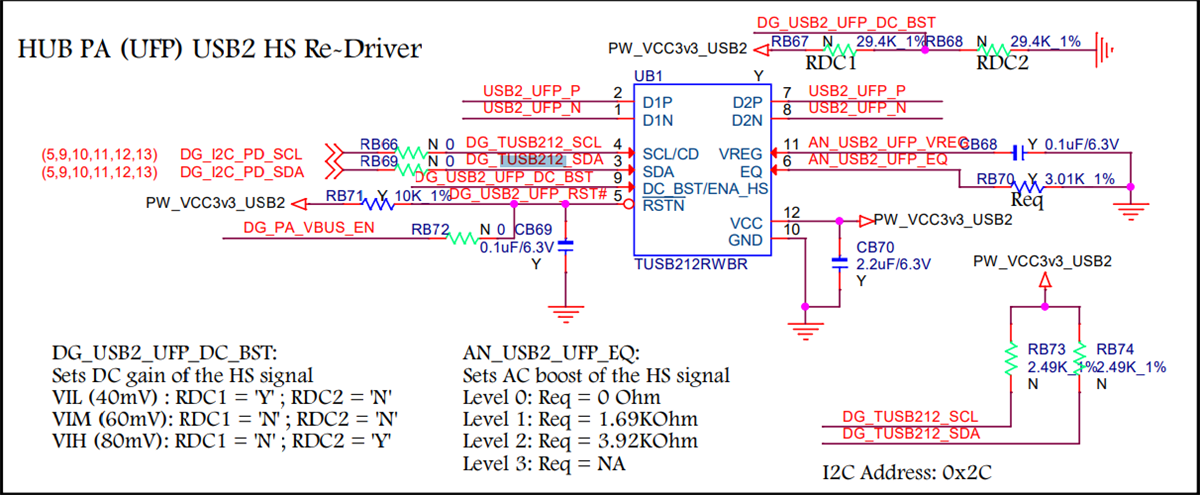

Would you please help to review below TUSB212 schematic?

Please let me know if any need modify or there have any other information you need. thanks!

Thanks!

Jeff

+1 Malik Barton57 over 3 years ago

HI Jeff,

Schematics look okay here, there is one comment below. Can you share a block diagram for this design? Are both redrivers used on the same port.

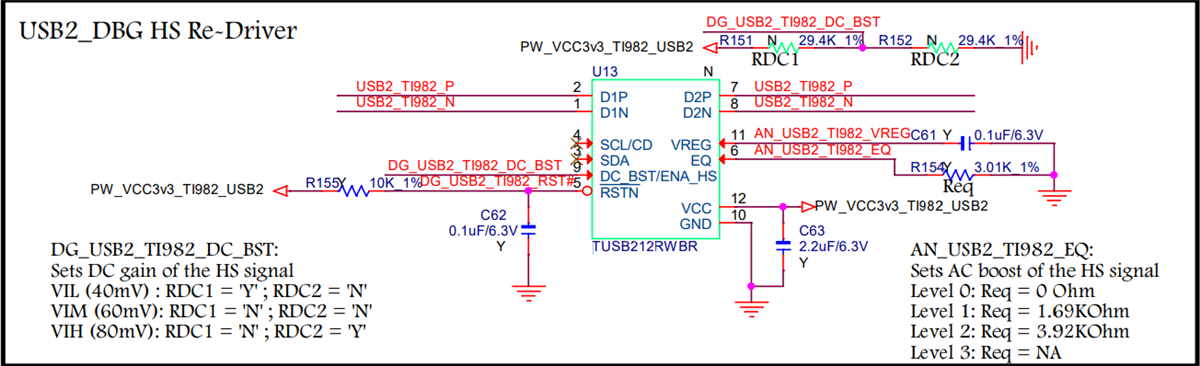

U13:

0 Jeff YANG over 3 years ago in reply to Malik Barton57

Hi Malik,

I've pass the detail in private massage.

Thanks!

Jeff

+1 Malik Barton57 over 3 years ago in reply to Jeff YANG

Hi Jeff,

Redriver are on two different ports. Block diagram looks good.
