I'm trying to find if the connection is ok from UB941 TO LCD，How to make the UB928 display the color bar image output by UB941 which configured with internal clock and timing in Pattern mode ？
TDA4VM DSI ---> UB941 ---> UB928 -- > LCD
Hi Alex,
I was able to generate the registers using Analog LaunchPAD (ALP). I am assuming that you already have this software downloaded but if not I highly recommend using it to configure the registers. ALP can be downloaded off the TI website.

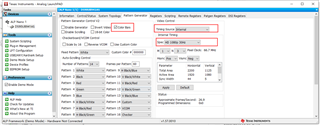

First, I opened ALP and chose the 941AS as my device. Second, I went to Pattern Generator tab. Third, I selected Colors Bars, changed the timing source to internal, and then changed the spec to HD 1080p 60 Hz (yours might be different if you are using HD 1080p 30 Hz). Lastly, I hit apply.
By clicking on the registers tab it allows me to see what the values of all the registers should be to generate the color bars pattern. In the registers tab if you click display it will provide you with a register dump.
If you have any trouble getting the register values let me know if you need me to provide a register dump or script.
Best regards,
Anthony
Hi Anthony

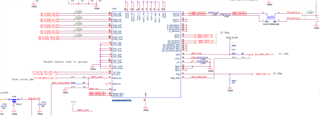

according to the tda4vm SCH, I

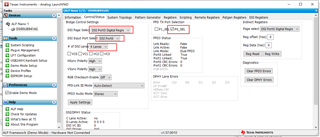

I configed the 941 as below, could you pls help me have a check?
after that, I get the patgen registers and set those registers to ub941, right?
Register Display - ALP Nano 1 - DS90UB941AS, Connector 1
Register Data Name
0x0000 0x00 PGRS
0x0001 0x00 PGGS
0x0002 0x00 PGBS
0x0003 0x08 PGCDC1
0x0004 0x48 PGTFS1
0x0005 0x53 PGTFS2
0x0006 0x1E PCTFS3
0x0007 0x20 PGAFS1
0x0008 0x03 PGAFS2
0x0009 0x1E PGAFS3
0x000A 0x0A PGHSW
0x000B 0x02 PGVSW
0x000C 0x0A PGHBP
0x000D 0x02 PGVBP
0x000E 0x03 PBSC
0x000F 0x1E PGFT
0x0010 0x0C PGTSC
0x0011 0x21 PGTSO1
0x0012 0x43 PGTSO2
0x0013 0x65 PGTSO3
0x0014 0x87 PGTSO4
0x0015 0xA9 PGTSO5
0x0016 0xCB PGTSO6
0x0017 0xED PGTSO7
0x0018 0x0F PGTSO8
0x0019 0x00 PGBE
0x001A 0x01 PGCDC2
