DP83869HM: Recommended layout infomration for 1000base-X

Oba

Genius 17335 points

Part Number: DP83869HM
Other Parts Discussed in Thread: DP83869

Hello,

My cusotmer is looking for layout guideline infomration for 1000base-X with DP83869.
The datasheet have some layout guideline, but there is no infomration about 1000base-X.
Do you have any recommendation?

Regards,
Oba

over 3 years ago

0 David Creger over 3 years ago

TI__Mastermind 27082 points

Hi Oba,

You can follow the layout guidelines given in SNLA387.

Thanks,

David

0 Oba over 3 years ago in reply to David Creger

TI__Genius 17335 points

Hello David,

I think SNLA387 doesn't mention about anything for 1000base-X(Fiber) which mean around SOP/SON/SIP/SIN/SD pins.
Don't we have anything for fiber use case?

Regards,
Oba

0 David Creger over 3 years ago in reply to Oba

TI__Mastermind 27082 points

Hi Oba,

For Fiber, the guidance is the same. Follow the MDI Traces section of the app note.

The only other thing to know is to place the coupling capacitors as close to the transmitter pins of the PHY as possible (SOP/SON).

Thanks,

David

0 Oba over 3 years ago in reply to David Creger

TI__Genius 17335 points

Hello David,

Thanks for your reply.

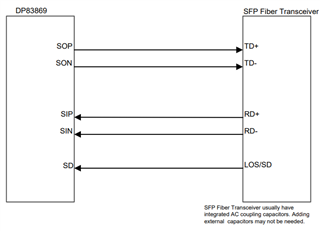

Are the coupling capacitors really required for SOP/SON?

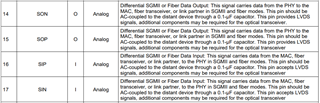

The datasheet doesn't mention about it and the EVM also doesn't have them.

Regards,
Obata

+1 David Creger over 3 years ago in reply to Oba

TI__Mastermind 27082 points

Hi Oba,

Yes, the coupling capacitors are required. Some SFP modules have them included, however.

Thanks,

David
