PCA9306: over-voltage when 1.8V to 3.3V translation

Chi Zhang2

Part Number: PCA9306

Hi, Expert

my customer using PCA9306 as 1.8V and 3.3V level shifter. but 1.8V side is raising up to unexpected 2.03V. please help to give some advice. thanks.

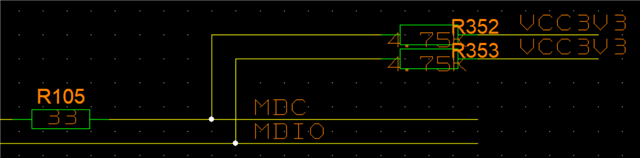

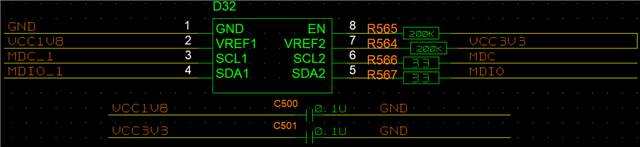

schematic:

2.03V wave not expected 1.8V

Chi

over 3 years ago

0 Clemens Ladisch over 3 years ago

Guru 316640 points

EN and VREF2 must be connected together, with a single 200 kΩ resistor.

0 BOBBY over 3 years ago

TI__Guru 72541 points

Hi Chi,

Clemen's is correct. the EN and Vref2 should be shorted together to provide the level shifting capabilities for the device. Currently the way they have it, The device will not level shift properly.

-Bobby
