SN65176B: Die topology

Johann Heger

Prodigy 20 points

Part Number: SN65176B

Hi Experts,

referring to the tread: SN65176B: SN65176BDR - Interface forum - Interface - TI E2E support forums

I see that the discussed 2 different die topologies are valid.

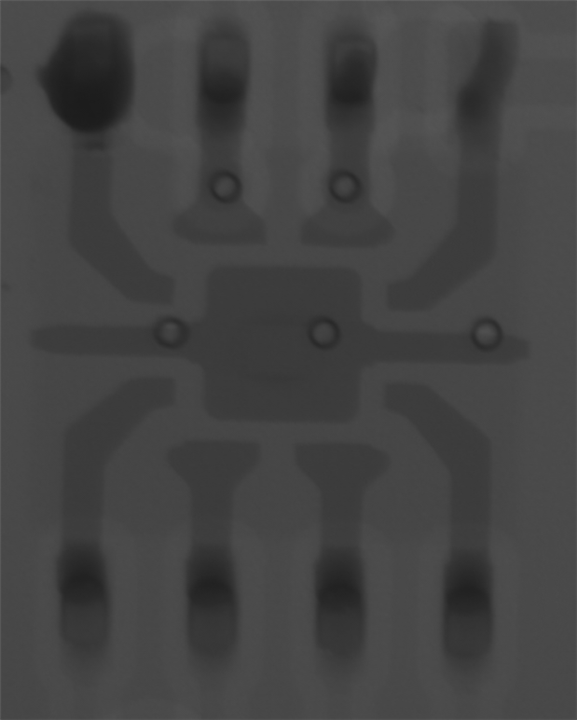

I see another third different die topology for SN65176DBR.

Is this topology also valid?

Thank you.

over 3 years ago

0 Clemens Ladisch over 3 years ago

Guru 316880 points

There are three manufacturing sites for the SN65176BDR. This is plausible.

0 Parker Dodson over 3 years ago

TI__Guru 52252 points

Hi Johann,

Can you please let me know the markings on top of the IC - all the codes would be helpful and I will trace the units to verify.

Best,

Parker Dodson

0 Johann Heger over 3 years ago in reply to Parker Dodson

Prodigy 20 points

Hi Parker,

Thanks for your reply.

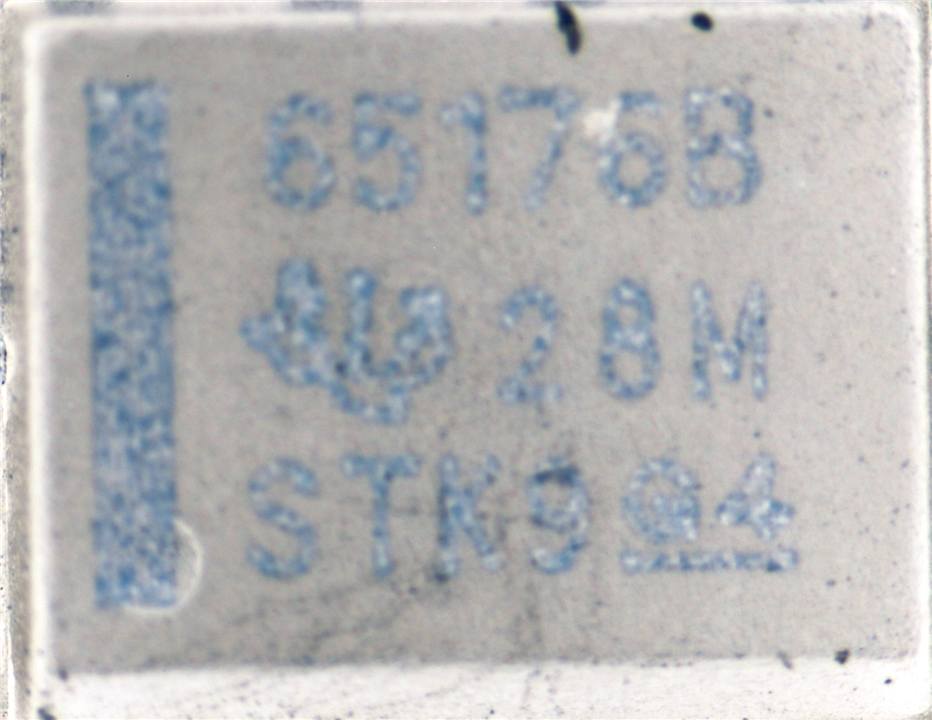

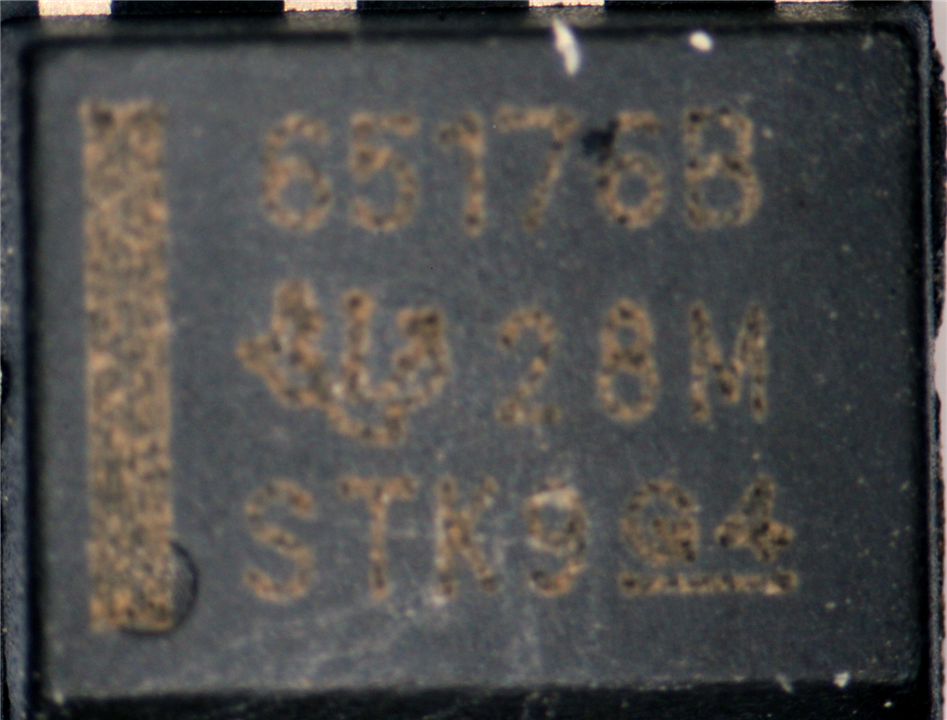

Attached pictures with markings

Looking forward to your reply.

Kind Regards

Johann

0 Parker Dodson over 3 years ago in reply to Johann Heger

TI__Guru 52252 points

Hi Johann,

I was no able to trace the lot code - please confirm if the is 1st Row: 65176B; 2nd Row: 28M; 3rd Row: STK9. If this is correct these units may be counterfeit as I am not finding them in our lot code tracer. If this is the case please see next steps here: https://www.ti.com/support-quality/quality-policies-procedures/anti-counterfeit.html

Best,

Parker Dodson
