DS90UB954-Q1: Schematic diagram of TI deserialization chip ds90ub954-q1 Checking

Jimmy Huang

Part Number: DS90UB954-Q1

Hello：

Please check the schematic diagram, one for four cameras, two for two in two out, and one for two in one out. Three CSI interfaces of CPU are used.

over 2 years ago

0 Hamzeh Jaradat over 2 years ago

TI__Guru** 107810 points

Hello Jimmy,

can you please explain what are you looking for?

Also I do not see what you are describing! i.e. "one for four cameras, two for two in two out"

0 Jimmy Huang over 2 years ago in reply to Hamzeh Jaradat

Genius 3515 points

HI Hamzeh：

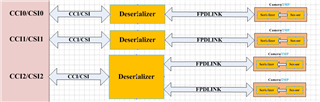

There are four FPDLINKs in total, which are connected to the camera in series. Two of them are one in and one out, and the other two are two in and one out. Three CSI interfaces of CPU are used.

0 Hamzeh Jaradat over 2 years ago in reply to Jimmy Huang

TI__Guru** 107810 points

Yes, this architecture is correct. They can use it in this way.

Alternatively, they can connect all 4x Cameras to 1x UB960 DES, and use it's 2x CSI output interfaces to the SoC.
