LMH0340: LMH0340 SDO and SDO# as video outputs

Aman Bahl

Prodigy 30 points

Part Number: LMH0340

Hi,

I am designing a HD-SDI Transmitter board which gives two SDI Video Outputs.

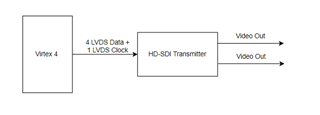

I have attached general block diagram for reference.

I need 2 video outputs from single HDSDI Chip. I am planning to use LMH0340 as HD-SDI Transmitter. It is mentioned in datasheet that SDO# is complementary output of SDO. If I use SDO# as video output will there be any difference in video compared to SDO?

over 2 years ago

0 Nasser Mohammadi over 2 years ago

TI__Guru* 93670 points

Greetings,

There will not be aa difference. Please note SDI is NRZ so it does not make a difference.

Regards,Nasser

0 Aman Bahl over 2 years ago in reply to Nasser Mohammadi

Prodigy 30 points

Hi Nasser,

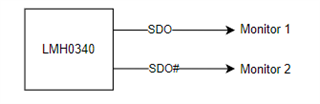

So if I connect SDO and SDO# to different monitors or display I would be seeing same video?

0 Aman Bahl over 2 years ago in reply to Nasser Mohammadi

Prodigy 30 points

Hi Nasser,

So if I connect SDO and SDO# to different monitors or display I would be seeing same video?

0 Nasser Mohammadi over 2 years ago in reply to Aman Bahl

TI__Guru* 93670 points

Hi Aman,

Yes you would see the same SDI video.

Regards,Nasser

0 Aman Bahl over 2 years ago in reply to Nasser Mohammadi

Prodigy 30 points

Hi Nasser,

Thank you for the quick reply.

Let me know that, what is the difference between SDO and SDO# ?

Regards
Aman

0 Aman Bahl over 2 years ago in reply to Nasser Mohammadi

Prodigy 30 points

Hi Nasser,

Thank you for the quick reply.

Let me know that, what is the difference between SDO and SDO# ?

Regards
Aman

0 Nasser Mohammadi over 2 years ago in reply to Aman Bahl

TI__Guru* 93670 points

Hi Aman,

SDO is a differential signal: SDO is positive lead while SDO# is the negative lead of this differential signal.

Regards,Nasser

0 Aman Bahl over 2 years ago in reply to Nasser Mohammadi

Prodigy 30 points

Hi Nasser,

If SDO and SDO# are differential signals then how will it become same video as SDO# is complementary of SDO.

Regards
Aman

0 Nasser Mohammadi over 2 years ago in reply to Aman Bahl

TI__Guru* 93670 points

Hi Aman,

SDI, per SMPTE specification, is polarity insensitive.

Regards,Nasser
