MIPI CSI CPHY ROUTING

Manikandan Ramasamy

Hi Team,

We planned to use MIPI CPHY CSI interface.

With respect to Layout routing of the CPHY CSI signals, Is that all trios can be routed as single ended or differentiality to be maintained like DPHY routing.

Kindly clarify b providing some references.

Thanks,

Manikandan Ramasamy.

over 2 years ago

0 David (ASIC) Liu over 2 years ago

TI__Guru**** 176186 points

Manikandan

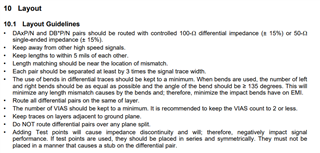

Our DPHY440 is a MIPI CSI-2/DSI re-timer, you can use its layout guideline in the datasheet as a reference,

Thanks

David

0 David (ASIC) Liu over 2 years ago in reply to David (ASIC) Liu

TI__Guru**** 176186 points

Manikandan

Sorry, DPHY440 is a MIPI DPHY re-timer, not a CPHY re-timer. We do not have a CPHY re-timer in our product portfolio.

I did search online and found this link on CPHY routing from Altium, https://resources.altium.com/p/mipi-physical-layer-routing-and-signal-integrity.

Thanks

David
