SN75DP159: Asking for SN75DP159 design review and suggestions

SHH

Mastermind 32126 points

Part Number: SN75DP159
Other Parts Discussed in Thread: TDP0604, TDP1204

Hi Team,

Customer would like to design SN75DP159 in the internal board on DP to HDMI2.1 TMDS application.

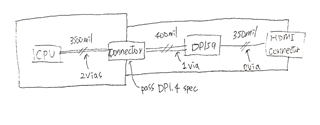

Would you please help review block diagram and provide your comments?

Will TDP0604 or TDP1204 be better solution here?

Thanks for help!

SHH

over 2 years ago

0 David (ASIC) Liu over 2 years ago

TI__Guru**** 176471 points

SHH

Is the CPU output DP or DP++? DP159 can only support DP++ to HDMI, but not DP to HDMI. Could you please check and verify?

Thanks

David

0 SHH over 2 years ago in reply to David (ASIC) Liu

TI__Mastermind 32126 points

Hi David,

it is DP++ from source side.

Will TDP0604 or TDP1204 be better solution here?

BR,

SHH

0 David (ASIC) Liu over 2 years ago in reply to SHH

TI__Guru**** 176471 points

SHH

Both DP159 or TDP0604 can support this design. Is the connector a DP connector? If so, can they take a EVM and compare the performance between the two?

Thanks

David
