SN65C1168E: Input impedance value and parasitic capacitance value for reciever input

MESH

Part Number: SN65C1168E

Hello

I am designing circuit of UART interface circuit.
I will use SN65C1168E for that circuit.

I am considering additional protection circuit for reciever input of SN65C1168E.
I would like to confirm input impedance value and parasitic capacitance value for reciever input of SN65C1168E.

Regards,

MESH

over 2 years ago

+1 Clemens Ladisch over 2 years ago

Guru 316690 points

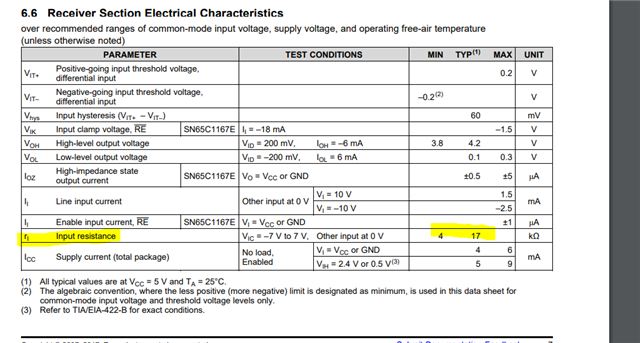

The input resistance is specified as r_I in section 6.6.

The input capacitance is not specified because it is insignificant next to the capacitance of the cable.

+1 Parker Dodson over 2 years ago

TI__Guru 52172 points

Hi MESH,

Input resistance is minimum of 4K - but typically 17K

We don't spec parasitic capacitance because, as Clemens mentioned, it is insignificant in comparison to cabling common in RS-422 based applications (this part is RS-422 transceiver)

Please let me know if you have any other questions!

Best,

Parker Dodson

0 MESH over 2 years ago in reply to Clemens Ladisch

Intellectual 880 points

Hello, Clemens

Thank you for your reply.

I will design additional protection circuit based on your reply.

Regards,

MESH

0 MESH over 2 years ago in reply to Parker Dodson

Intellectual 880 points

Hello, Dodson

Thank you for your reply.

Your reply is helpful for me.

Regards,

MESH

0 Parker Dodson over 2 years ago in reply to MESH

TI__Guru 52172 points

Hi Mesh,

You are welcome! Please let me know if you have any other questions!

Best,

Parker Dodson
