DS90UB960-Q1: Package outline

Hi,

I'm looking into this and will get back to you by the end of the week.

Best,

Lucas

Hello,

Thank you for your reply.

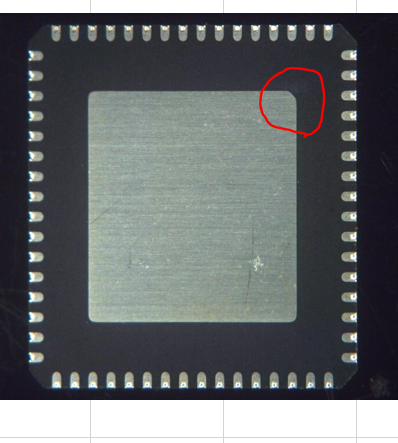

 The drawing in the datasheet is a bit misleading, but there is still a Pin 1 ID marking on the physical chip. The corner you circled in red is slightly chamfered and has a different shape from the other 3 corners.

Could you show exact package outline information instead of datasheet ?

Best Regards,

Hello,

Thank you for your reply.

 The only difference between your physical chip and the datasheet diagram is the Pin 1 ID marking. One source supplier used the semi-circle Pin 1 ID while another source supplier used the chamfered corner.

Do you have plan to add "chamfered corner" information to datasheet ?

Best Regards,
