TCAN1044AV-Q1: Schematic Review

Nikola Zlatanovski

Part Number: TCAN1044AV-Q1
Other Parts Discussed in Thread: ESD2CAN24-Q1

Hello!

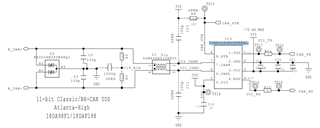

I have the following schematic to review, please let me know if there is anything of note. I will be doing the review in parallel.

Thanks!
Nikola

over 2 years ago

0 Danny Bacic over 2 years ago

TI__Mastermind 26826 points

Nikola,

Looks like the split termination is DNP so this is fine as a non-end node.

The decoupling capacitors are present and look to be appropriately valued.

It's also great to see that ESD2CAN24-Q1 is included in the protection socket.

Please let me know if any other questions arise!

Best,

Danny
