SN65LVDT33: sn65lvdt33pw maximum temperatures

Can you also provide the junction-to-case thermal resistance?

Hi Harrison,

I believe the max operating the absolute max junction temperatures are the same for this device.

Using the dissipation rating table on page 4 of the datasheet:

The power rating for the PW device is 402mW. The Operating factor is 6.2mW/C

We can take 402mW and divide this by the 6.2mW/C to find the increase in temperature if we assume max power (402mW)

402/6.2 = ~65C

This power rating was stated for 85C so we add 85C to 65C to get our final junction temperature

85C+65C = ~150C.

This means the max junction and operating should be 150C for this device.

Harrison Citrin said:

Can you also provide the junction-to-case thermal resistance?

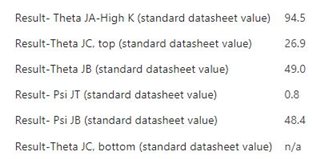

I've tried looking this up in our internal thermal system but it seems to be bugged for me at the moment. I'm going to leave this ticket/thread open and check back tomorrow to see if it works for me. If not, I will submit a new request to get this information (usually this takes up to 2 weeks though so I'm hoping I can search the database rather than submit a request).

-Bobby

Harrison,

I've confirmed with my colleagues on the thermal database. Looks like it's not in it so we will need to submit a request. I've already put in a ticket for it.

I'll keep this thread open and report back when I get the thermal data.

-Bobby
