ONET1141L: Register configuration issue

Colin Chen

Part Number: ONET1141L

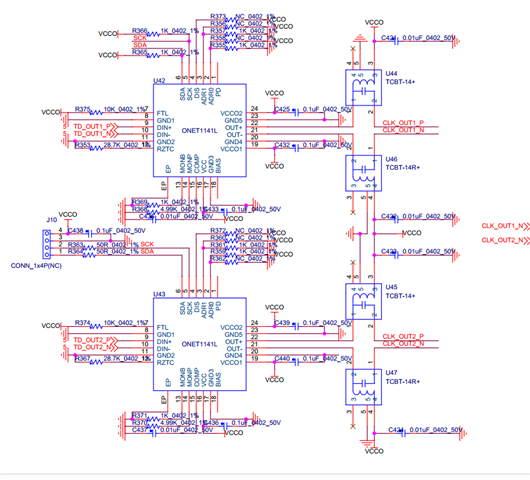

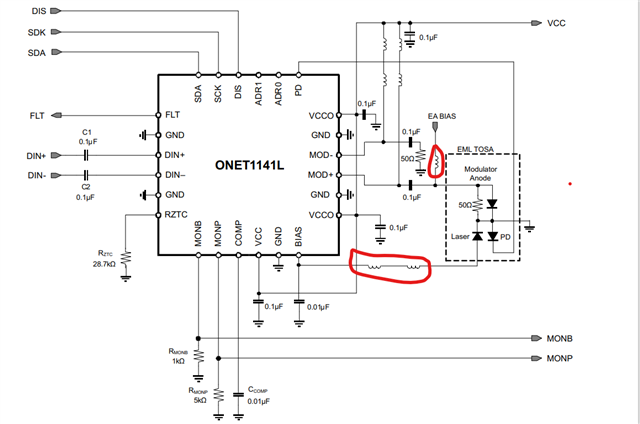

The schematic diagram is as follows.When I change the register data, the output signal does not change at all. The signal is the same as the default setting. I try to write new data into each register, but the output does not change at all. What do I need to pay attention to when configuring registers？Design requirements：Output a signal of 2VPP.Looking forward to your reply,Thank you~

over 1 year ago

0 Nasser Mohammadi over 1 year ago

TI__Guru* 93670 points

Hi Colin,

1). Suggestion is to short or replace with zero-ohm Resistors on SDA and SCK.

2). Reading section 2 of the data sheet, there is already internal 10K pullup and perhaps you can remove external pull ups on these two pins.

3). Other than this, please use scope to verify SDA/SCK timing as noted in section two of the data sheet.

Regards, Nasser

0 Colin Chen over 1 year ago in reply to Nasser Mohammadi

Intellectual 825 points

Hi Mohammadi,

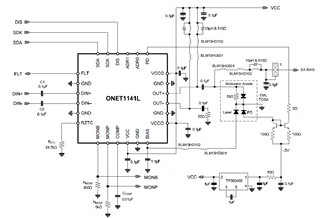

We have preliminarily confirmed that there may be a problem with the hardware circuit. Currently, we plan to add EML TOSA for testing, but we are not sure about the inductor selection in the reference design. Can you help us take a look？Looking forward to your reply, thank you
