TCA9509: TCA9509DGKR taping package information

Yu-Chen

Part Number: TCA9509

Team,

The TCA9509 datasheet (page 21) only has package info of X2SON devices, but without VSSOP.
Can you help to check, or advise below data, of TCA9509DGKR? Thanks.

1. Packing size-Taping Reel size(inch):
2. Packing size-Taping width(mm):
3. Packing Pitch(mm):
4. Feed Direction(0/90/180/270):

over 1 year ago

0 Tyler Townsend over 1 year ago

TI__Mastermind 48248 points

Hi Yu-Chen,

I don't have this information at the moment. I would need to contact SC packaging team.

Please allow for a week to get results.

Regards,

Tyler

+1 Tyler Townsend over 1 year ago in reply to Tyler Townsend

TI__Mastermind 48248 points

Hi Yu-Chen,

Good news, I was able to get info quick this time.

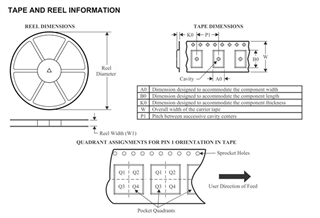

Reel Diameter = 330 MM

Reel Width = 12.4 MM

Carrier Tape Width = 12 MM

A0 Width = 5.3 MM

B0 Length = 3.4 MM

K0 Thick = 1.4 MM

Pocket Pitch = 8 MM

0 Yu-Chen over 1 year ago in reply to Tyler Townsend

TI__Intellectual 1255 points

Thanks Tyler. How about the Pin1 Quadrant of TCA9509DGKR?

0 Tyler Townsend over 1 year ago in reply to Yu-Chen

TI__Mastermind 48248 points

Hi Yu-CHen,

I have contacted the packaging team again. I will respond as soon as possible.

Regards,

Tyler

+1 Tyler Townsend over 1 year ago in reply to Tyler Townsend

TI__Mastermind 48248 points

Hi Yu-Chen,

Sorry for the delay.

Pin 1 quadrant in "Q1" for the TCA9509DGKR.

Regards,

Tyler
