TDP2004: TDP2004 loss calculate tool

Brian Chan

Expert 6460 points

Part Number: TDP2004

Tool/software:

Hi Team

I used below calculator and parameter to calculate customer design.

Jean_canyon_TDP2004_RX & TX trace length budgeting.xlsx

Below is parameter for this project of TDP2004

Total length is 6000 mil >> I assume the pre channel can be inch. I find the post channel can meet their requirement.
...

They only have three 3 vias. 2 buried and 1 hole in pre - channel

Customer side will use FR4 board material so I don’t change any setting of excel.

please let me know any other parameter I should add

BTW, do BU side any halogen free document?

I can't find it on the material content search.

BRs

Brian

over 1 year ago

+1 David (ASIC) Liu over 1 year ago

TI__Guru**** 176811 points

Brian

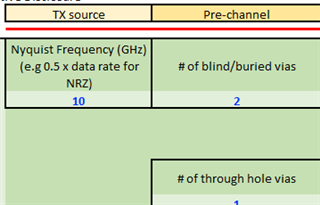

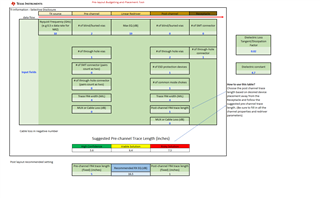

Please see below screen capture for my calculation,

Assume 1in post channel, TDP2004 can support 6.4in pre-channel assume post-channel will have 2 through hole vias. Without the 2 through hole vias, the pre-channel can be 7.7in.

Please let me check on the halogen free document and get back to you.

Thanks

David

0 Brian Chan over 1 year ago in reply to David (ASIC) Liu

TI__Expert 6460 points

Hi David

Thanks for your help

How about the halogen docuement?

BRs

Brian

0 David (ASIC) Liu over 1 year ago in reply to Brian Chan

TI__Guru**** 176811 points

Brian

The halogen document has been uploaded, you can download it here, https://www.ti.com/materialcontent/en/home.

Thanks

David

0 Brian Chan over 1 year ago in reply to David (ASIC) Liu

TI__Expert 6460 points

Hi David

OK thanks for your help

BRs

Brian
