DP83867IS: TX_D2, TX_D3 and TX_CTRL floating pin

Ashish Bhadouria

Part Number: DP83867IS

Tool/software:

I am using the Ethernet PHY DP83867ISRGZT in our design. In our design it is used in SGMII mode so for this I m not using TX_D2, TX_D3 and TX_CTRL.

So I need to know can these signals left float or should give any known state to these signals.

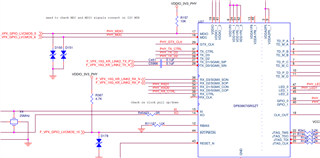

Kindly see the below image for your reference.

Please let me know this thing

Regards

Ashish

0 Evan Mayhew over 1 year ago

Hi Ashish,

These pins can be left floating if SGMII is being used.

I recommend changing MDIO pull-up value to 1.5kΩ or 2.2kΩ.

Thank you,

Evan

0 Ashish Bhadouria over 1 year ago in reply to Evan Mayhew

Hi Evan

Thanks for your response

I will change the pull up value as per your suggestion.

Regards

Ashish
