TUSB9261: TUSB9261

?? ?

Part Number: TUSB9261

Tool/software:

hello!

Our SOC is using a USB 3.0 HUB to connect to TUSB9261 in order to achieve USB 3.0 to SATA conversion. However, the SOC is unable to detect the hard drive and suspects that TUSB9261 is not working. Could you please help resolve this issue? Thank you!

Could you please help review the attached schematic diagram to ensure it is correct?

SPI flash is burned by a programmer and then installed on the board. The firmware name is TUSB926x_FW-v0.99_u1u_2 enabled.bin

TUSB9261 serial port does not have log printing. What is the baud rate?

TUSB9261 reset to high level, 40MHz clock is normal, TUSB9261 pin2 PWM0 connected LED is always on

7563.USB to SATA.pdf

Tony

11 months ago

0 David (ASIC) Liu 11 months ago

TI__Guru**** 176281 points

Tony

An engineer has been assigned to this E2E thread and we will respond as soon as we can.

Thanks

David

0 Nicholaus_Malone 11 months ago in reply to David (ASIC) Liu

TI__Mastermind 27925 points

Hello,

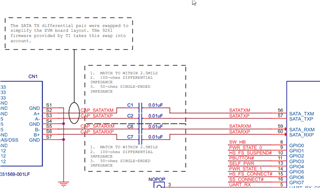

Multiple firmwares are available for the TUSB9261. The correct one should be chosen based on whether there is a polarity swap on the SATA side of the TUSB9261. The EVM has a polarity swap, so the default firmware often takes this into account.

In your schematic, there is no polarity swap, which is different than the EVM. I suspect this may be related to the issue. I am followin gup to see if there is a u1/u2 enabled firmware that also does not swap the SATA polarity.

The baud rate of the TUSB9261 is whatever you have set the COM port to on your computer.

Regards,

Nicholaus

0 Nicholaus_Malone 11 months ago in reply to Nicholaus_Malone

TI__Mastermind 27925 points

Tony,

I have sent you a friend request. Please accept it so I can send you a u1/u2 enabled version of the firmware with no polarity swap.

Regards,

Nicholaus

0 ?? ? 11 months ago in reply to Nicholaus_Malone

Prodigy 20 points

Hi Nicholaus
We have accepted your friend request.

Thank you for your support.

Tony

0 Nicholaus_Malone 11 months ago in reply to ?? ?

TI__Mastermind 27925 points

Ok, I have sent you the binary file for u1/u2 enabled with no polarity swap. It is provided as-is, software support is limited.

Let me know if this works for you.

Regards,

Nicholaus

0 ?? ? 11 months ago in reply to Nicholaus_Malone

Prodigy 20 points

Hi Nicholaus，
I have updated the firmware you sent, but it still doesn't work and the serial port hasn't printed any logs
What is the baud rate of TUSB9261 UART?

Tony

0 Nicholaus_Malone 11 months ago in reply to ?? ?

TI__Mastermind 27925 points

Hi Tony,

- SCI Interface Configuration -

• BAUD rate: 115,200
• Data bits: 8
• Stop bits: 1
• Parity: None.
• Flow control: None.

Regards,

Nicholaus

0 Nicholaus_Malone 11 months ago in reply to Nicholaus_Malone

TI__Mastermind 27925 points

*Updating E2E Ticket*

"Hi Nicholaus

This firmware version still doesn't work, and uart still doesn't print any logs.
The firmware is first download to spi flash through a programmer and then pasted onto the board.
Also, is the schematic correct?

[Schematic Files Removed]

Tony"

0 Nicholaus_Malone 11 months ago in reply to Nicholaus_Malone

TI__Mastermind 27925 points

TUSB9261Review_Tony.pdf

Hi Tony,

Here is the schematic review. The only thing I noticed was the GRSTz pin. There is a requirement in the datasheet to have it deasserted 2ms after the power rails are stable.

If you toggle GRSTz after power up does that change the result?

Regards,

Nicholaus

0 Nicholaus_Malone 11 months ago in reply to Nicholaus_Malone

TI__Mastermind 27925 points

Hi Tony,

Has there been any updates on this issue?

Thanks,

Nicholaus

0 Nicholaus_Malone 10 months ago in reply to Nicholaus_Malone

TI__Mastermind 27925 points

Closing due to inactivity.

Regards,

Nicholaus

0 Nicholaus_Malone 9 months ago in reply to Nicholaus_Malone

TI__Mastermind 27925 points

Hi Tony,

I saw that you opened this issue again. Let me know if you have any updates. If not, I will close.

Regards,

Nicholaus

0 ?? ? 9 months ago in reply to Nicholaus_Malone

Prodigy 20 points

The problem is still unresolved, we plan to change the solution.

Thanks.

0 Nicholaus_Malone 9 months ago in reply to ?? ?

TI__Mastermind 27925 points

Hi Tony,

You are not going to use the TUSB9261? I am confident this issue would have been resolved if we continued debug, but I understand that debug time may have been a concern.

If you are changing solution, then we will close the issue as there is no more support needed.

Regards,

Nicholaus
