TPIC8101EVM: Integral OUTPUT

user5163865

Part Number: TPIC8101EVM

Tool/software:

Hi,

Our customer tried the same settings as in the EVM datasheet, but the output amplitude is not as calculated.
If you know what the cause is, could you please let me know?

The circuit has not been changed, so the input gain remains 1.
The input signal is also 7.27kHz/300mVpp.

EVM Setup Example

Customer Setup

Waveform

Best regard,
Hiroshi

8 months ago

0 John Miller - Sensing 8 months ago

TI__Mastermind 40295 points

Hiroshi,

I will try to reproduce what you have seen and will update this thread tomorrow/Friday.

Regards,
John

0 user5163865 8 months ago in reply to John Miller - Sensing

Genius 3980 points

John-san,

Thank you for your cooperation.

Best regards,
Hiroshi

0 John Miller - Sensing 8 months ago in reply to user5163865

TI__Mastermind 40295 points

Hirohisa-san,

Do you have a sensor connected to your EVM?

Just so you know, many of us will be OOO for the holidays for the next two weeks.
If you have questions, please don't hesitate to post to this thread, but responses to posts will probably be delayed.

regards,
John

0 user5163865 8 months ago in reply to John Miller - Sensing

Genius 3980 points

John-san,
No actual sensor is connected, but a 7.27kHz signal generator output is connected to the input of the EVM.

Best regards,
Hiroshi

0 Scott Bryson 8 months ago in reply to user5163865

TI__Mastermind 21010 points

Hiroshi-san,

Thank you for following up with this information. John and most of the team is out of office for the US holiday season, so further responses will be delayed. We thank you for your patience until we are back in the office and able to look at this further. We expect to be able to respond no later than Jan 6.

Scott

0 user5163865 8 months ago in reply to Scott Bryson

Genius 3980 points

Yes, certainly.
Thank you for your cooperation.

0 John Miller - Sensing 8 months ago in reply to user5163865

TI__Mastermind 40295 points

Hirohisa-san,

Have you seen any guidance - data sheet, user's guide, or forum/blog - for connecting a signal generator to the input?

How are you connecting the signal generator to the input? Is it DC or AC coupled?

Regards,
John

0 user5163865 8 months ago in reply to John Miller - Sensing

Genius 3980 points

John-san,

Our customer has stated that they are using an AC coupled 300mVpp input, based on the datasheet and EVM UG.
The circuit is exactly as shown in EVM UG Figure 9, with no changes.

Best regards,
Hiroshi

0 John Miller - Sensing 8 months ago in reply to user5163865

TI__Mastermind 40295 points

Hirosji-san,

Thank you for the information.
I will update this thread by COB on Thursday.

regards,
John

0 John Miller - Sensing 8 months ago in reply to John Miller - Sensing

TI__Mastermind 40295 points

Hiroshi-san,

We are having bad weather in Dallas today and tomorrow, so we are being told to work remotely.

It is likely we will be able to get back in the labs on Monday, so I will try to reproduce the EVM behavior then, updating this thread by COB Tuesday.

Regards,
John

0 user5163865 8 months ago in reply to John Miller - Sensing

Genius 3980 points

John-san,

Noted with thanks.

0 John Miller - Sensing 7 months ago in reply to user5163865

TI__Mastermind 40295 points

Hiroshi-san,

I was able to set up an EVM as shown in your exmaple.

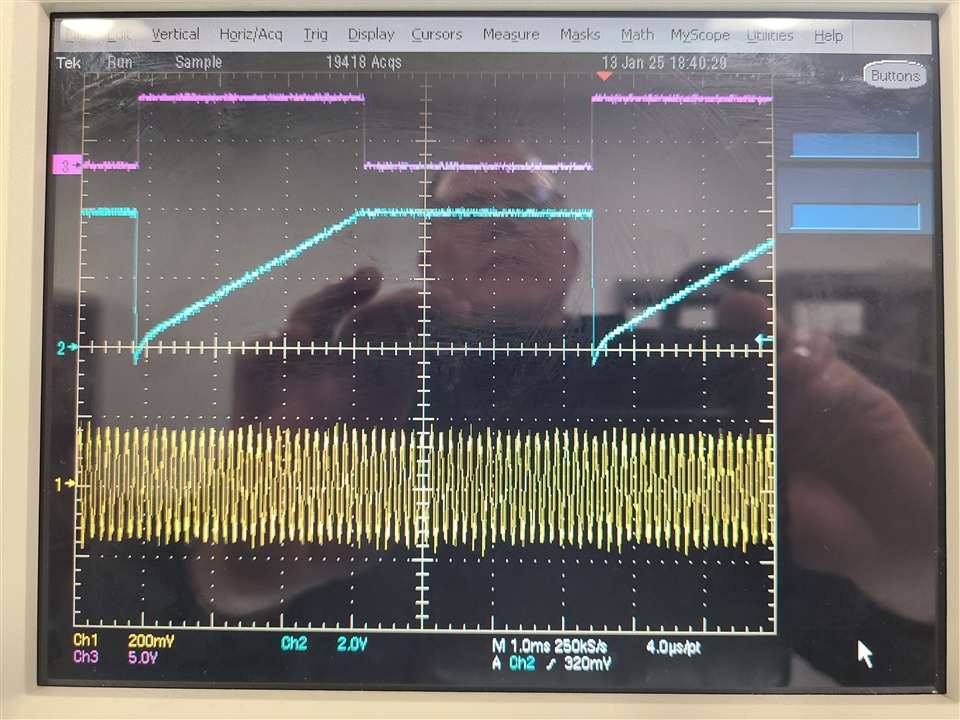

With the settings give earlier in your thread, I was getting about 4V of deflection on the output as shown in the image below.

If the integration time constant field in the GUI was changed from '10' to '9' the output increased from 4V to about 4.3V.
So it looks like there is some variation in the output levels versus the time constant settings.

Regards,
John
