TMUXHS4612: No CEC pin to select the different HDMI ports

Chandrashekhar D R

Part Number: TMUXHS4612

Tool/software:

Hi team,

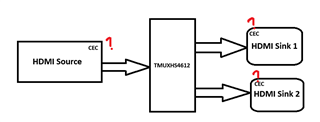

We are using the part in one of our design where we are using a single HDMI Source and two HDMI slaves.

We are unable to find the CEC pin in this part to mux with the source and 2x sinks. Do we need to use additional external mux to connect the CECs?

7 months ago

0 David (ASIC) Liu 7 months ago

TI__Guru**** 176811 points

Hi,

The CEC signal is one-line, party-line, so you can just connect CEC from all connectors together.

Thanks

David

0 Chandrashekhar D R 7 months ago in reply to David (ASIC) Liu

Prodigy 20 points

Hi David.

Thanks for the response.

As CEC is used to control thigs like Display OFF, Sleep etc...

If we short the CEC from both Sinks and give it to source, then I cannot control individual Sink through CEC, right?

0 David (ASIC) Liu 7 months ago in reply to Chandrashekhar D R

TI__Guru**** 176811 points

Hi,

All CEC devices have both a physical and logical address, but non-CEC devices only have a physical address. So each CEC device appearing on the control signal line has a Logical Address that is allocated to only one device in the system.

Thanks

David
