DP83867IR: DP83867IRRGZR: IBIS Model(with MDI side) Required

Hi Virag,

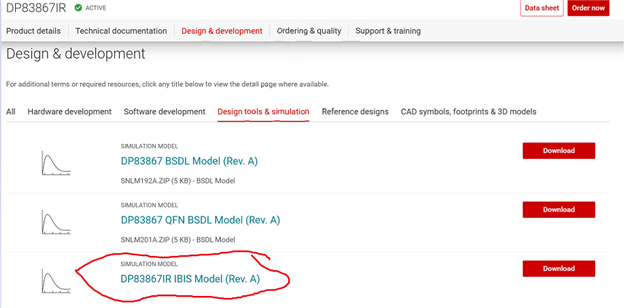

You can find the IBIS model for this device on the product page under 'Design tools and simulation':

Best,

Shane

Hello Shane

The IBIS model file present on the Product page has the MDI side pins as NC. Kindly see below:

[Pin] signal_name model_name R_pin L_pin C_pin
1 TD_P_A NC 0.25497 2.80728nH 0.23843pF
2 TD_M_A NC 0.22942 2.50500nH 0.22986pF
3 VDDA2P5 POWER 0.10622 1.77680nH 0.27526pF
4 TD_P_B NC 0.19896 2.14930nH 0.20075pF
5 TD_M_B NC 0.19060 2.05213nH 0.19481pF
6 VDDA1P1 POWER 0.18909 2.03461nH 0.18879pF
7 TD_P_C NC 0.18991 2.04401nH 0.19428pF
8 TD_M_C NC 0.19709 2.12753nH 0.19915pF

We need to perform SI simulation on MDI side, so kindly provide the model with which we can perform the same.

Hello Shane,

Thanks for the response.

Can we use any other standard IBIS model for simulation for this IC?

Can you provide us with the alternate IBIS model having MDI side for ethernet.

Regards,

Virag
