DP83TG720R-Q1: Test Mode 7, read the Bit Error Rate (BER)

Nanjun Xu1

Tool/software:

Dear Sir/Madam,

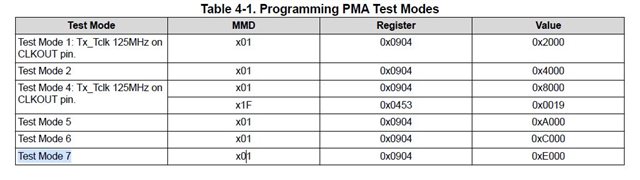

I want to find a way to read the BER. In PMA mode, the test mode 7 should be selected shown in 4.1 PMA Testing Procedure in the datasheet.

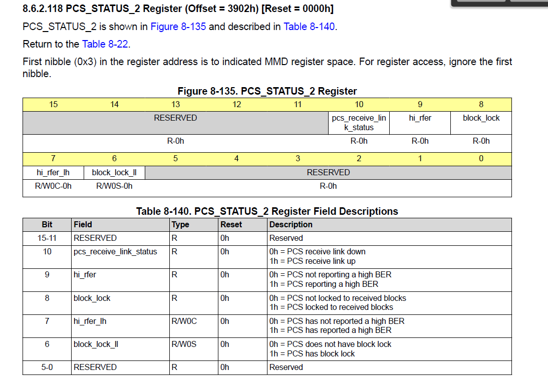

According to 802.3bp, the BER count can be read via bit 5:0 of the PCS status 2 register. However, these bits of PCS status 2 register of this PHY are reserved.

Is there any way to evaluate the BER of this PHY?

Thanks in advance.

Kind regards,

Neo

over 1 year ago

0 Drew Miller1 over 1 year ago

TI__Mastermind 41653 points

Hi Neo,

I'm reviewing this and will get back to you shortly.

Thanks,

Drew

0 Nanjun Xu1 over 1 year ago in reply to Drew Miller1

Intellectual 400 points

Dear Drew,

is there any update for this question?

Kind regards,

Neo

0 Drew Miller1 over 1 year ago in reply to Nanjun Xu1

TI__Mastermind 41653 points

Hi Neo,

Apologies for the delay. The PHY supports checking for errors using PRBS_STATUS_6 register (0x0620). I'd recommend reviewing data sheet section "Built-In Self-Test For Datapath" for details on configuring the PRBS gen/checker. Table 7-2 Datapath BIST Programming has details on PRBS checker configuration.
