TUSB8020B-Q1: USB HUB and Dual-PD

Nikunj Zadeshwariya

Prodigy 175 points

Part Number: TUSB8020B-Q1

Tool/software:

Hi TI team,

For my automotive application,

Two USB type-C for Sink only operation
User can connect any One of the Type-C to Host PC and another to Power adapter.
System should be powered by Adapter supply when connected or with Host supply (with downgraded power requirement)

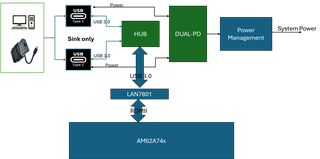

I understand that I may require USB HUB and Dual-PD controller as shown in below high level diagram:

Please let me know the suitable design and HUB, PD for above application (preferably Automotive grade). Feel free to ask any clarity if required further.

Thanks,

Nikunj

5 months ago

0 Brian Zhou 5 months ago

TI__Guru*** 145650 points

HI Nikunj:

Hub upstream port is connected to type-C port and hub downstream port is connected to SOC?

Best

Brian

0 Nikunj Zadeshwariya 5 months ago in reply to Brian Zhou

Prodigy 175 points

Yes Brian. Upstream port is connected to type-C port and hub downstream port is connected to SOC.

As shown in above diagram, In my application two USB Type-C ports are available. User may connect either one of them to Host. Another may or may not be connected to the Power supply.

Thanks,

Nikunj

0 Brian Zhou 5 months ago in reply to Nikunj Zadeshwariya

TI__Guru*** 145650 points

It should work, What is LN7801?

Best

Brian

0 Nikunj Zadeshwariya 5 months ago in reply to Brian Zhou

Prodigy 175 points

LAN7801 is LAN to USB bridge from another vendor.

Can you please recommend the part number for the Dual-PD? Preferably automotive grade for our application.

Thanks,

Nikunj

0 Nikunj Zadeshwariya 5 months ago in reply to Nikunj Zadeshwariya

Prodigy 175 points

Also, please help me understand whether CC-controller would suffice our need or we will require PD-controller.

Thanks,

Nikunj

0 Brian Zhou 5 months ago in reply to Nikunj Zadeshwariya

TI__Guru*** 145650 points

If you need power over 15W ( 5v, 3A), then you need PD controller.

Best

Brian

0 Brian Zhou 5 months ago in reply to Brian Zhou

TI__Guru*** 145650 points

dual PD controller for Q1: TPS25772DQRQLRQ1

Which company for this project?

best

brian

0 Nikunj Zadeshwariya 5 months ago in reply to Brian Zhou

Prodigy 175 points

Thank you for you inputs Brian.

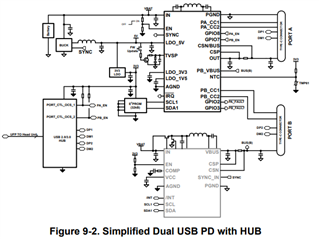

For dual-PD TPS25772DQRQLRQ1, application I see that It has one VIN with two Output port. If I understand correctly, that means input port should be dedicated to Power supply in and Port A & B works as output. Can I connect Port-A & B to Type-C connector and IN to Power management block in my application?

In my application, I would require two Input ports ( Host PC or Adapter or it can be both connected at a time) and one output port which will be used as supply to my device.

Which company for this project?--I couldn't get your question. Do you mean the project application?

Thanks,

Nikunj

0 Brian Zhou 5 months ago in reply to Nikunj Zadeshwariya

TI__Guru*** 145650 points

Hi Nikunj:

This is dual PD application, IN is from Battery or power source. You may just need one type-C port, either connect to PC or charger.

Best

Brian
