TCAN1051HGV: Signal integrity analysis : Input level of TCAN

Pierre Amblard

Part Number: TCAN1051HGV

Tool/software:

Hi,

I'm working on signal integrity for a CAN bus, and I'm looking for the VIH (Voltage Input High) and VIL (Voltage Input Low) values.

I found two different versions which may correspond to these values :

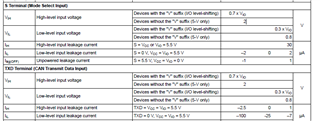

(1)

(2)

What's the difference between them?
Which one should I use for determining bus state ?

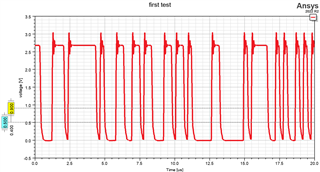

I've performed first simulation, and use picture (1) to find level ... Is it correct ot not ?

Thanks in advance for your help!

5 months ago

0 Pierre Amblard 5 months ago

Prodigy 40 points

Sorry I'v used picture (2) not (1)

0 Michael Ikwuyum 5 months ago in reply to Pierre Amblard

TI__Guru 50786 points

Hi Pierre,

VIH and VIL are thresholds recognized by the inputs for valid Highs and Lows.

For the bus state, please focus on the CAN outputs for VID I.e., capture CANH and CANL and observe their differences, VID = CANH - CANL.

VID > 900 mV where CANH is higher than CANL indicates dominant (logic 0) while VID < 500 mV where CANH and CANL are close to each other or where CANL is higher, is recessive (logic 1), thanks.

Best Regards,

Michael.

0 Pierre Amblard 5 months ago in reply to Michael Ikwuyum

Prodigy 40 points

Hi Michael,
Thank you for your reply!

Could you please let me know where exactly you found this information in the TCAN1051GHV datasheet?

Best regards,
Pierre

0 Clemens Ladisch 5 months ago in reply to Pierre Amblard

Guru 316760 points

P. 11, "Receiver Electrical Characteristics".

0 Pierre Amblard 5 months ago in reply to Clemens Ladisch

Prodigy 40 points

Thank you for your reply!

Could you also please point me to the section in the TCAN1055GHV datasheet that justifies the following statement?

“VID > 900 mV where CANH is higher than CANL indicates dominant (logic 0), while VID < 500 mV where CANH and CANL are close to each other, or where CANL is higher, is recessive (logic 1).”

Best regards,
Pierre

0 Clemens Ladisch 5 months ago in reply to Pierre Amblard

Guru 316760 points

V_IT+ is 900 mV. V_IT− is smaller because of the hysteresis.
