TS3DV642: 2:1 HDMI mux issues

Xoni Landia

Part Number: TS3DV642

Tool/software:

Hi,

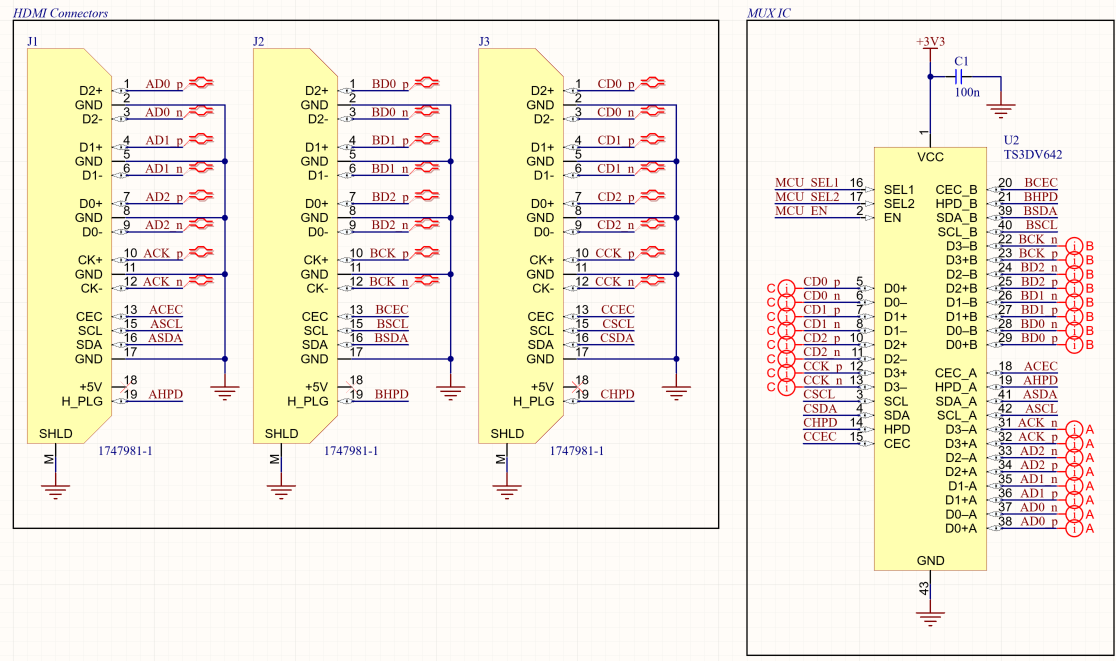

I have designed the following HDMI 2:1 switch but I'm not getting any connection between the input and output ports, do you see any issue with the schematic?

Thank you!

4 months ago

0 Nir Gilgur 4 months ago

TI__Mastermind 18105 points

Hello Xoni,

Please reupload the schematic.
It is not visible from my side.

Thanks,

Nir

0 Xoni Landia 4 months ago in reply to Nir Gilgur

Prodigy 10 points

Hi Nir,

Can you see the image with this link? https://postimg.cc/0zc9cVhD

Thanks,

Xoni

0 Nir Gilgur 4 months ago in reply to Xoni Landia

TI__Mastermind 18105 points

Hello Xoni,

I am not able to access the link.
Can you provide a pdf version of the schematic?

Thanks,

Nir
