TUSB8044A: can't regonize the device

Jeff YANG

Part Number: TUSB8044A

Tool/software:

Hi,

This case based on the below E2E post.

https://e2e.ti.com/support/interface-group/interface/f/interface-forum/1506640/tusb8044a-can-t-regonize-the-device/5790488#5790488

We will provide waveform for 3.3v 1.1v and GRStz signal later.

platform: Jetson Orin AGX

OS Ubuntu

Kernel:5.15.148

JetPack 6.2

connected below device when boot-up:

M.2 MV32 (B-key)

USB TYPE A USB 3.0 Storage

USB TYPE A K/B Dongle

there have 6/1000 chance to lost one of device.

Here is the LOG for you reference.

usb_fail.log

Thanks!

Jeff

3 months ago

0 Brian Zhou 3 months ago

TI__Guru*** 146095 points

Hi Jeff:

Do you have pullup on SCL/SDA?

Best

Brian

0 Jeff YANG 3 months ago in reply to Brian Zhou

Mastermind 7865 points

Hi Brian,

No, there have no pullup on SCL/SDA. thanks!

Jeff

0 Jeff YANG 3 months ago in reply to Jeff YANG

Mastermind 7865 points

Hi Brian,

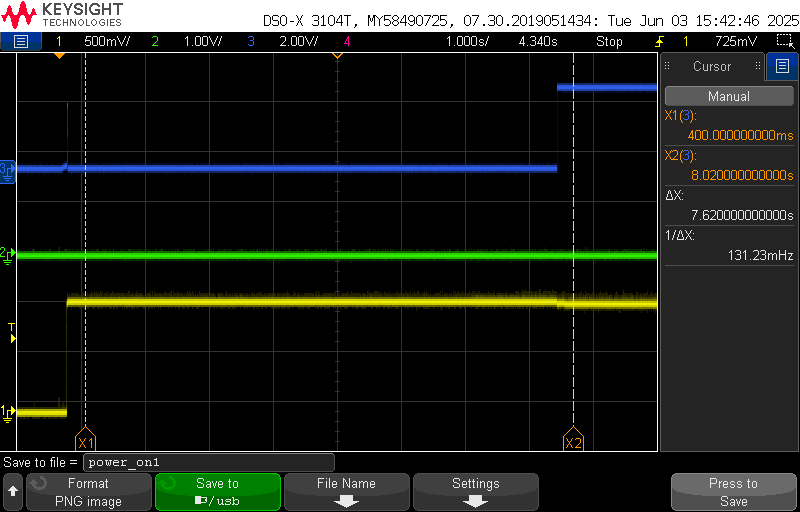

This is the first time boot-up waveform.

CH1: 1.1V

CH2: GRSTN

CH3: 3.3V

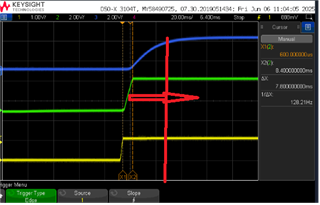

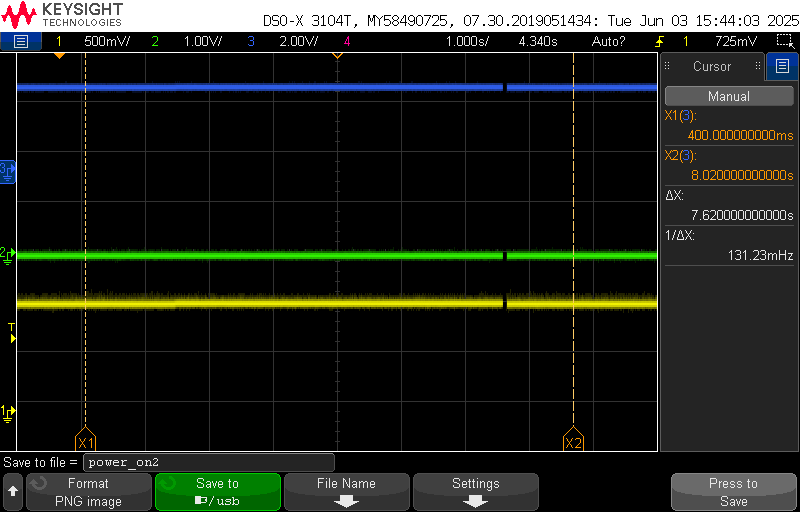

This is reboot waveform, but it is not the waveform when issue happend, since the fail rate only 6/1000.

Do you want the waveform when issue happend?

CH1: 1.1V

CH2: GRSTN

CH3: 3.3V

Thanks!

Jeff

0 Brian Zhou 3 months ago in reply to Jeff YANG

TI__Guru*** 146095 points

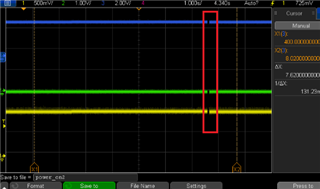

What happened for red area in 2nd waveform.

Regards

Brian

0 Jeff YANG 3 months ago in reply to Brian Zhou

Mastermind 7865 points

Hi Brian,

That is the gap during the oscilloscope scan.

Due to the longer reboot time, the time setting was adjusted to be longer.

This results in the framed gap, but there is no drop.

Thanks!

Jeff

0 Brian Zhou 3 months ago in reply to Jeff YANG

TI__Guru*** 146095 points

HI Jeff:

Can I see when GRST goes high after 3.3v?

Can you adjust time between 1.1v and 3.3v? 7s is a little longer.

Best

Brian

0 Jeff YANG 3 months ago in reply to Brian Zhou

Mastermind 7865 points

Hi Brian,

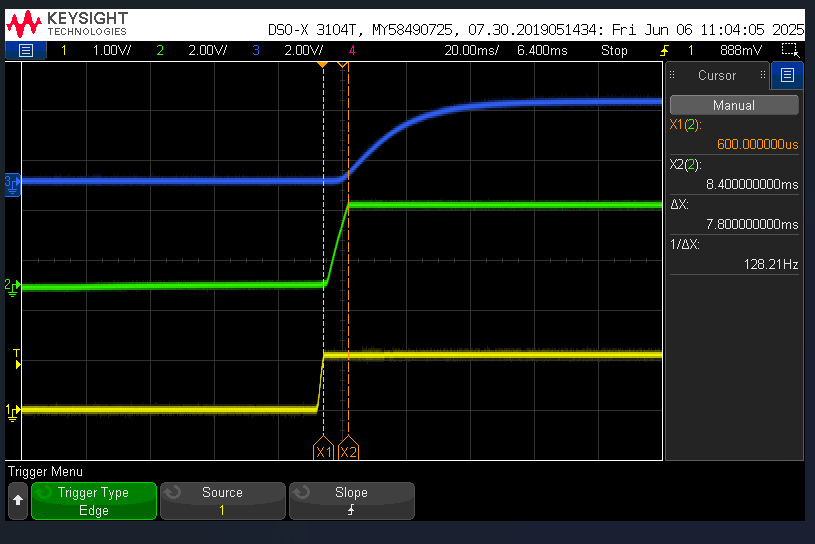

There was no delay up to 7 seconds. After 1.1V is enabled, it takes about 7.8 ms for 3.3V to turn on. CH3 is the RST signal.

Additionally, the device drop occurred during a warm boot. During this process, both 1.1V and 3.3V remain powered and are not turned off. thanks!

CH1: 1.1V

CH2: GRSTN

CH3: 3.3V

Jeff

0 Brian Zhou 3 months ago in reply to Jeff YANG

TI__Guru*** 146095 points

Hi Jeff:

Supply waveform looks fine.

How do you control downstream port device Vbus? How long the signal trace from hub to device attached?

Best

brian

0 Jeff YANG 3 months ago in reply to Brian Zhou

Mastermind 7865 points

Hi Brian,

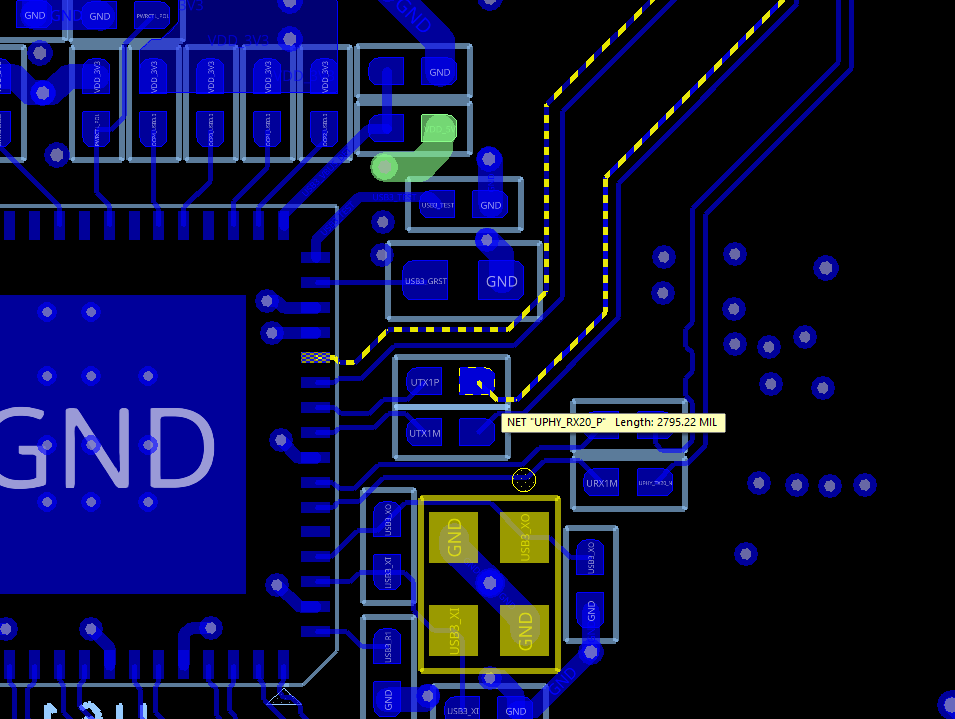

About 2800mil.

0 Brian Zhou 3 months ago in reply to Jeff YANG

TI__Guru*** 146095 points

Hi Jeff:

2.8in PCB trace should be fine.

How did customer control downstream port Vbus? use PWRCTL pin to control Vbus switch?

Best

brian

0 Jeff YANG 3 months ago in reply to Brian Zhou

Mastermind 7865 points

Hi Brian,

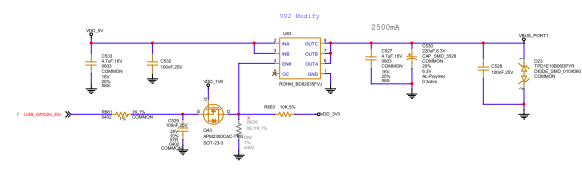

We use load switch control and keep turn on after boot-up. thanks!

Jeff

0 Brian Zhou 3 months ago in reply to Jeff YANG

TI__Guru*** 146095 points

CH1: 1.1V

CH2: GRSTN

CH3: 3.3V

sorry, I didn't notice last time Green is GRST.

GRST should go high after 3.3v stable.(>3ms)

Best

Brian

0 Jeff YANG 3 months ago in reply to Brian Zhou

Mastermind 7865 points

Hi Brian,

Above waveform is cold boot it will turn off power and trun on again.

But we also found the device drop issue when warm boot, VDD power 1.1V and 3.3V, include GRST always keep high.

Do you have any idea for this? Thanks!

Jeff

0 Brian Zhou 3 months ago in reply to Jeff YANG

TI__Guru*** 146095 points

Jeff:

Do you mean system reboot from sleep mode?

Regadrs

brian

0 Jeff YANG 3 months ago in reply to Brian Zhou

Mastermind 7865 points

Hi Brian,

Yes.

0 Brian Zhou 3 months ago in reply to Jeff YANG

TI__Guru*** 146095 points

when issue happened, did hub upstream still connected or just downstream port device lost? what device is lost? SS, HS or FS/LS?
