TPD4E02B04: pin6-10 use case

J-ZHOU8

Intellectual 2640 points

Part Number: TPD4E02B04

Tool/software:

Hello experts

Is it correct to understand that 1-10, 2-9, 4-7, and 5-6 pins are connected?

I don't understand the text here, and I am confused.

It says:

Not connected; used for optional straight-through routing. Can be left floating or Grounded

I think 6-10 can be either floating or GND, but if that is the case, the signal does not penetrate

Regards,

Zhou

2 months ago

0 Clemens Ladisch 2 months ago

Guru 316690 points

These pins are not connected at all. You can solder them to the IO1/2/3/4 traces, which makes routing easier.

0 J-ZHOU8 2 months ago in reply to Clemens Ladisch

TI__Intellectual 2640 points

Thank you, so 1,2,3,4,5,6,7,8,9,10 are not connected between each other right please?

Regards,

Zhou

0 Clemens Ladisch 2 months ago in reply to J-ZHOU8

Guru 316690 points

3 and 8 are connected. The others are not.

0 Sebastian Muriel 2 months ago in reply to Clemens Ladisch

TI__Genius 17990 points

Hi J-ZHOU,

As Clemens mentioned the NC pins are not connected internally, this is why they are labeled as NC and can be left floating or grounded.

Most people will route their signals through each input and NC as shown in the datasheet:

Regards,

Sebastian

0 J-ZHOU8 2 months ago in reply to Sebastian Muriel

TI__Intellectual 2640 points

Thank you Sebastian

Currently, customer is thinking to use like this:

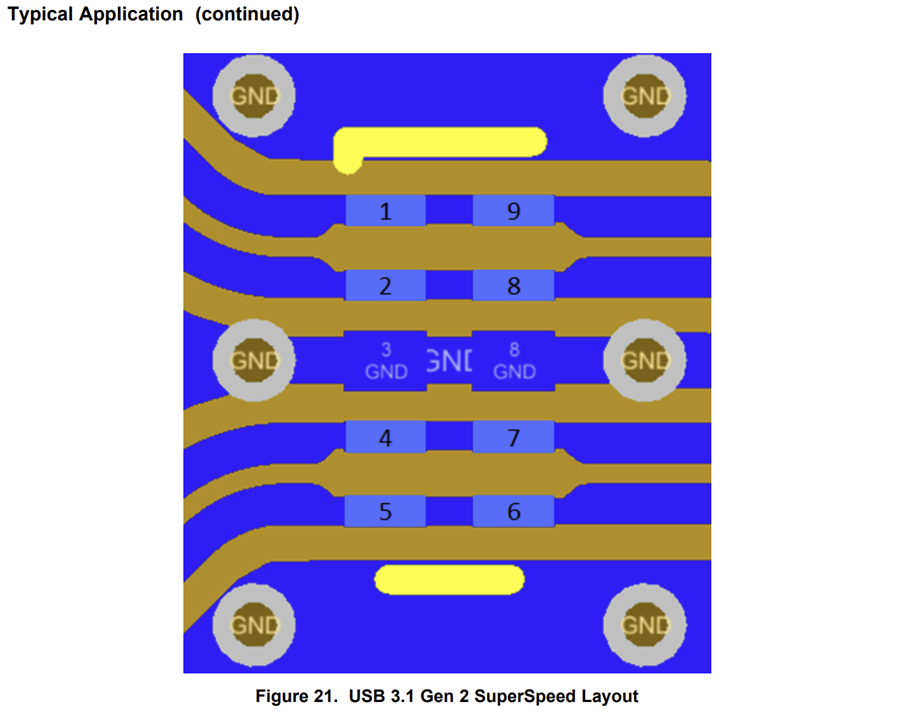

For ESD protection, they want to input 4 channel signals to 1,2,4,5pin, and get output from pin　9,8,7,6

how should they connect please?

Regards,

Zhou

0 J-ZHOU8 2 months ago in reply to Sebastian Muriel

TI__Intellectual 2640 points

Hello, could you please kindly reply the final question please?

Regards,

Zhou

0 Sebastian Muriel 2 months ago in reply to J-ZHOU8

TI__Genius 17990 points

Hi,

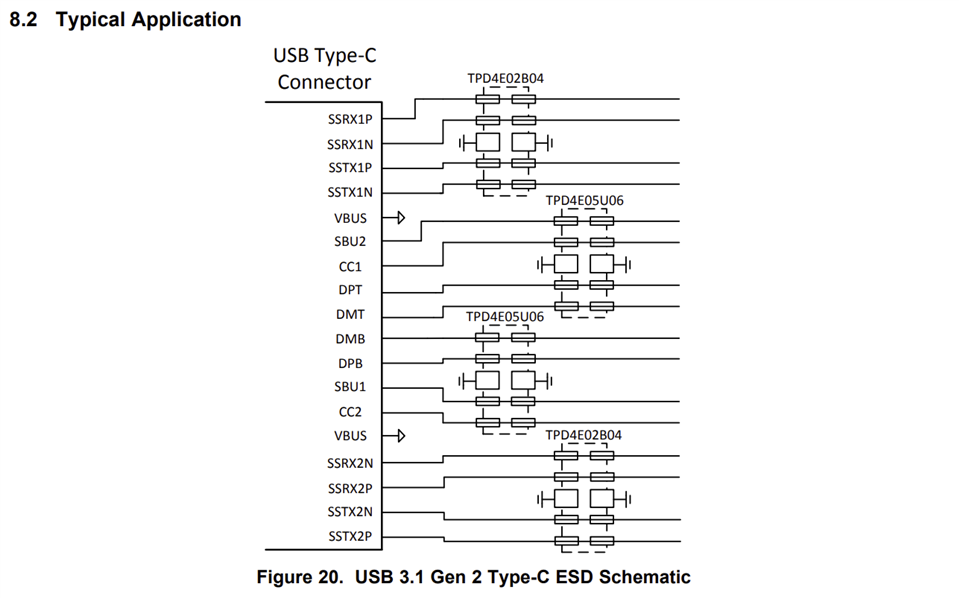

They can connect it as shown in the example schemtics in the datasheet:

Regards,

Sebastian
