TUSB2046B: TUSB2046B issues for EFT/B test

Hi Nagi:

     EFT/B test is ESD stress test?

Regards

Brian

Brian,

EFT/B and ESD tests are similar.

But the test points, waves, levels, etc., are different.

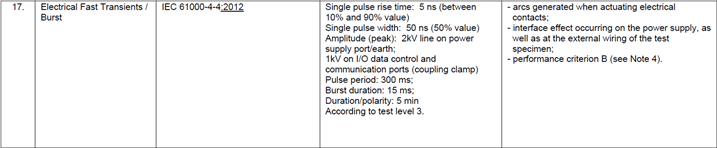

ESD test uses a single high-energy pulse, whereas EFT/B test uses repeated low-energy pulses.

    What is EMC? 4 Questions About EMI, Radiated Emissions, ESD and EFT in Isolated

The TUSB2046B and downstream devices are built into our product.

Our product has one USB-UP connector.

This issue occurs at all test points. (Power cable, USB cable, and other signal cables)

Thank you and best regards,

Nagi

HI Nagi:

   Did this test performed on upstream port and downstream port? I didn't see any ESD protection device in the schematic.

Regards

Brian

Brian,

No, we tested the upstream port only.

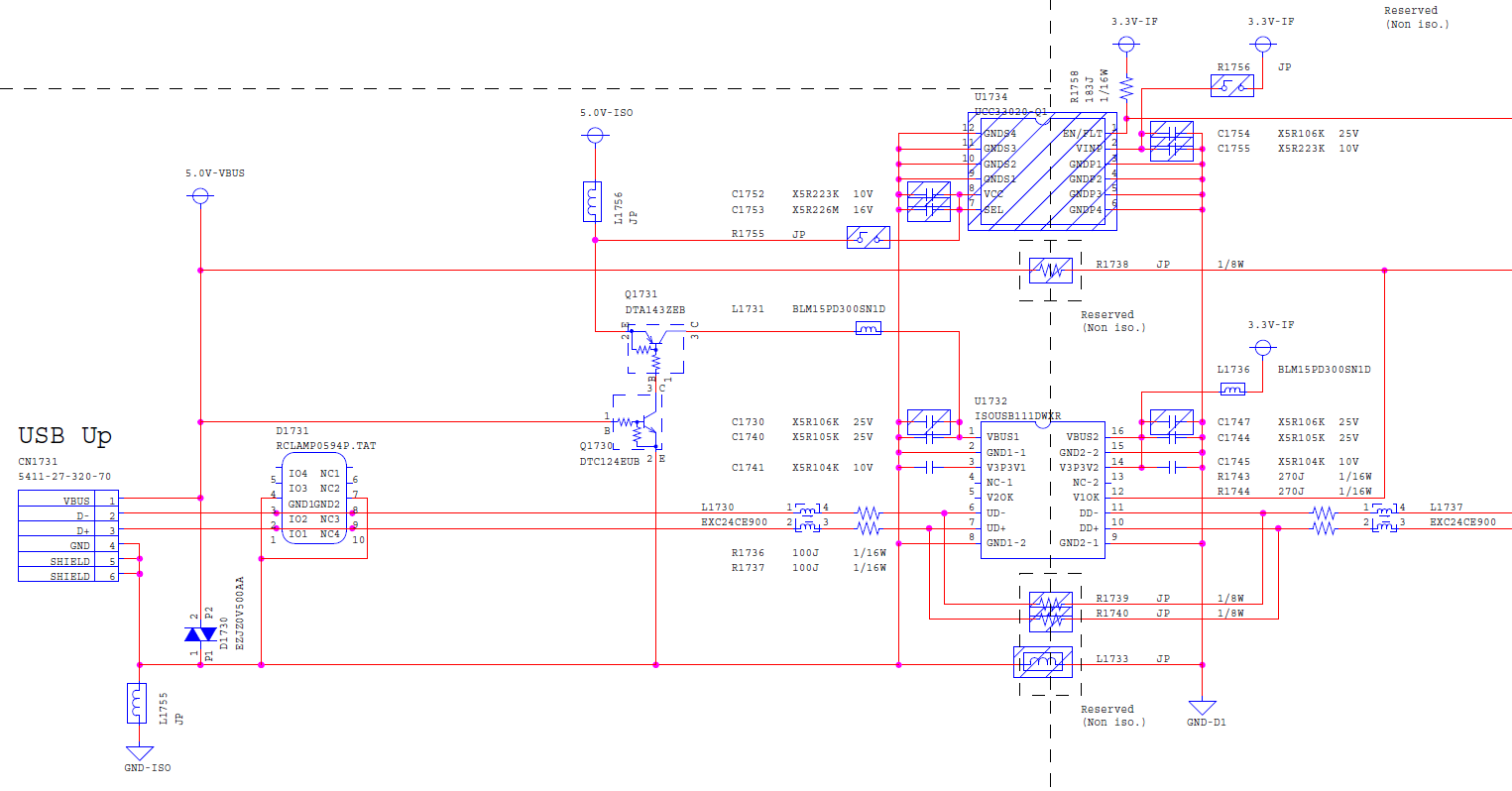

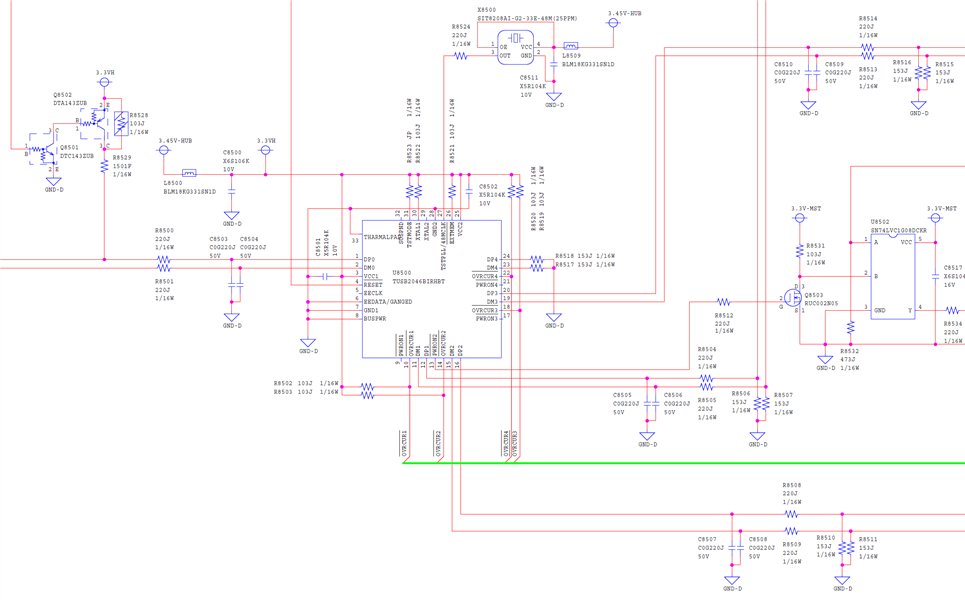

Attached is our schematic around the upstream port.

Thank you and best regards,

Nagi

Hi Nagi:

   You already tried by removing  isolator ? Any place you can add common mode choke?

Best

Brian

Brian,

Yes, but it didn't resolve the issues.

We would like to know if ESD to the upstream port can cause the following issues, and how to recover from this state.

1. The connection between the PC and the TUSB2046B is lost, and it does not recover automatically.

2. The downstream device of the TUSB2046B is lost, and it does not recover automatically.

Thank you and best regards,

Nagi

Hi Nagi:

  Did TUSB2046B got damaged? it can be recover after power off/on process?

Best

Brian

Brian,

Yes, it can be recovered after the product power off/on.

Thank you and best regards,

Nagi
