DS280BR820EVM: IBIS Model vs Ds280BR810 EVM kit result

Abhinit Grg

Part Number: DS280BR820EVM
Other Parts Discussed in Thread: DS280BR810

Tool/software:

If put Tx input voltage as 1v(peak to peak) the output voltage at Rx doesn't show any amplitude gain with Vod different parameter in linear mode.
But when we use the kit, the amplitude of output voltage chnages.
Why during of ibis model the amplitude of Rx doesn't change ?

2 months ago

0 Drew Miller1 2 months ago

TI__Mastermind 36793 points

Hi Abhinit,

Do you have any simulation results or scope captures you can share?

Thanks,

Drew

0 Abhinit Grg 2 months ago in reply to Drew Miller1

Prodigy 40 points

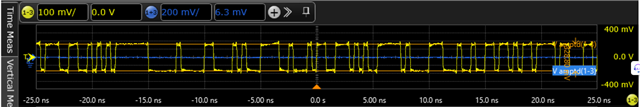

The input voltage here is 100mv peak to peak and output is 328mv peak to peak with kit but with simulation the output doesn't changes.

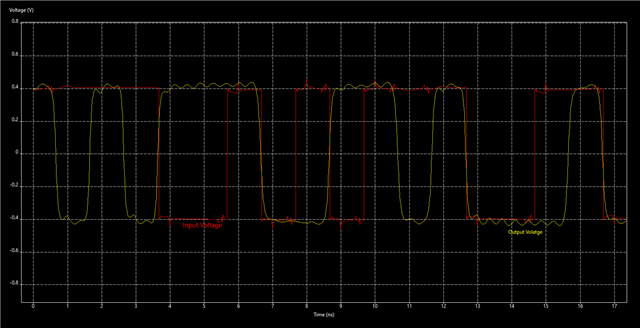

This is simulation data. The ouput amplitude doesn't change and remain same as input amplitude.

0 Drew Miller1 2 months ago in reply to Abhinit Grg

TI__Mastermind 36793 points

Hi Abhinit,

The relationship between input and output voltages should follow the relationship below while using linear mode.

A few possibilities to explain your observation:

IBIS-AMI model could be modeling limiting mode
There might be different gain settings between the device and the model

Thanks,

Drew

0 Abhinit Grg 2 months ago in reply to Drew Miller1

Prodigy 40 points

EQ gain mode means 0/1 or do you mean Vod settings?

0 Evan Su 2 months ago in reply to Abhinit Grg

TI__Mastermind 18950 points

Hi Abhinit,

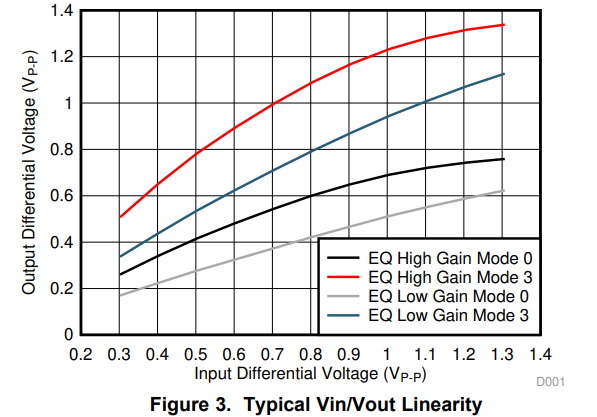

Drew is currently out of the office. Could you clarify which part of Drew's reply you are referring to? Figure 3 is from the DS280BR810 datasheet and the plots are for the EQ High Gain and EQ Low Gain options for the "wide-band amplitude gain" system. This works with the VOD but is configured as a separate setting from the VOD level.

Best,

Evan Su
