TCAN1042HGV-Q1: Surge protection component recommendation

Beida Song

Intellectual 800 points

Part Number: TCAN1042HGV-Q1
Other Parts Discussed in Thread: ESD2CAN24-Q1, , TCAN1042-Q1, TCAN1042V-Q1

Tool/software:

Hi Expert,

Could Ti have a surge test report? I can't get surge test report form EMC report list.

For surge protection for CANH & CANL, do you have any recommendation components?

2 months ago

0 Michael Ikwuyum 2 months ago

TI__Guru 51726 points

Hi Beida,

I believe you are referring to ESD surge tests. Please see the IBEE reports for all available testing.

We typically recommend ESD2CAN24-Q1, thanks.

Best Regards,

Michael.

0 Beida Song 2 months ago in reply to Michael Ikwuyum

TI__Intellectual 800 points

Hi Michael,

I see IBEE test report and there is no surge test report. How does TI do surge test for TCAN1042HGV-Q1?
ESD2CAN24-Q1 is usually used to protect device from ESD damaging, not surge protection. Do you recommend add TVS for surge protection in CANH & CANL?

0 Michael Ikwuyum 2 months ago in reply to Beida Song

TI__Guru 51726 points

Hi Beida,

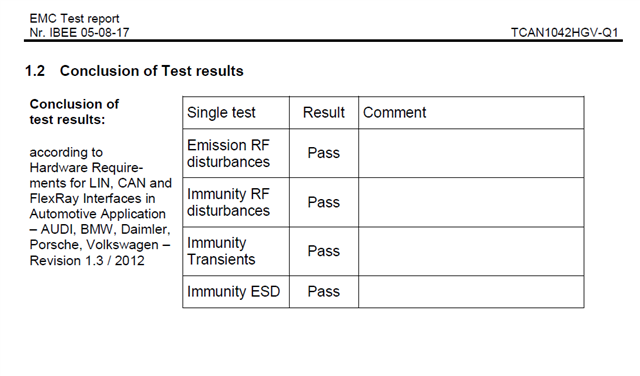

1. Please search for immunity, burst, ESD reports in the IBEE test report. The report includes ISO pulses / surge waveforms that the device must withstand.

2. You may use any surge rated TVS diode to handle slower, high energy surges as needed, per your system requirements, thanks.

Best Regards,

Michael.

0 Beida Song 1 month ago in reply to Michael Ikwuyum

TI__Intellectual 800 points

Hi Michae,

I find there is only ESD report and there is no surge waveform. Could you share the surge waveform report or download link?

0 Michael Ikwuyum 1 month ago in reply to Beida Song

TI__Guru 51726 points

Hi Beida,

By surge, I suspected you were referring to ESD. Unfortunately, we do not have additional data to share as the report includes all available data as of this time, thanks.

Best Regards,

Michael.

0 Beida Song 1 month ago in reply to Michael Ikwuyum

TI__Intellectual 800 points

Hi Michael,

Why not TI have surge test waveform of TCAN1042-Q1?

0 Michael Ikwuyum 1 month ago in reply to Beida Song

TI__Guru 51726 points

Hi Beida,

Please share an example, thanks.

Best Regards,

Michael.

0 Beida Song 1 month ago in reply to Michael Ikwuyum

TI__Intellectual 800 points

Hi Michael,

The surge standard is IEC 61000-4-5. Do we have any test waveform? If not, could you can make a test for TCAN1042V-Q1?

0 Michael Ikwuyum 1 month ago in reply to Beida Song

TI__Guru 51726 points

Hi Beida,

Unfortunately, 4-5 is more related to the system / equipment level requirement dependent on the board layout, external parts, coupling networks, etc. While it may be nice to have, we do not provide it and mainly provide the device level requirement listed in data sheet and will not be providing any additional data but may refer to the IBEE report with more info on IEC 61000-4-2, similar to the data sheet, thanks.

Best Regards,

Michael.
