TCAN1042HGV-Q1: Recommended ESD component in TCAN1042HGV-Q1

Lukas Liao

Prodigy 250 points

Part Number: TCAN1042HGV-Q1

Hi TI teams

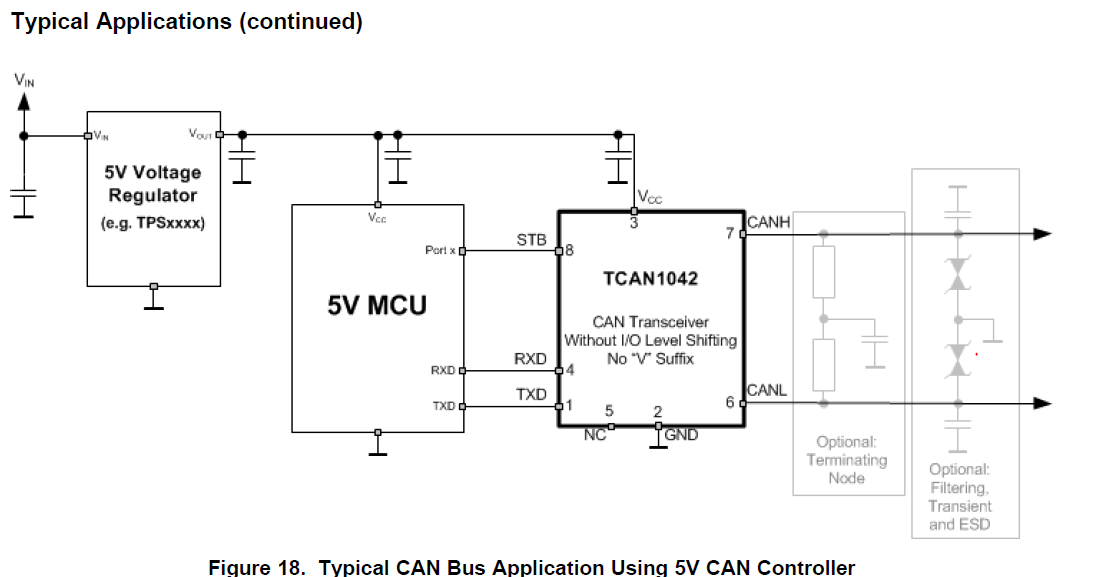

In the datasheet of TCAN1042HGV-Q1, there is an option for ESD.

Do you have the recommended component for ESD?

or any specification recommended?

Thanks

Lukas

over 6 years ago

0 Eric Hackett over 6 years ago

TI__Guru 74292 points

Lukas,

The diode typically recommended for CAN applications is PESD1CAN or PESD2CAN. Please let me know if you have any other questions.

Regards,

0 Lukas Liao over 6 years ago in reply to Eric Hackett

Prodigy 250 points

Hi Eric

Thanks for your response.

And I have another question.

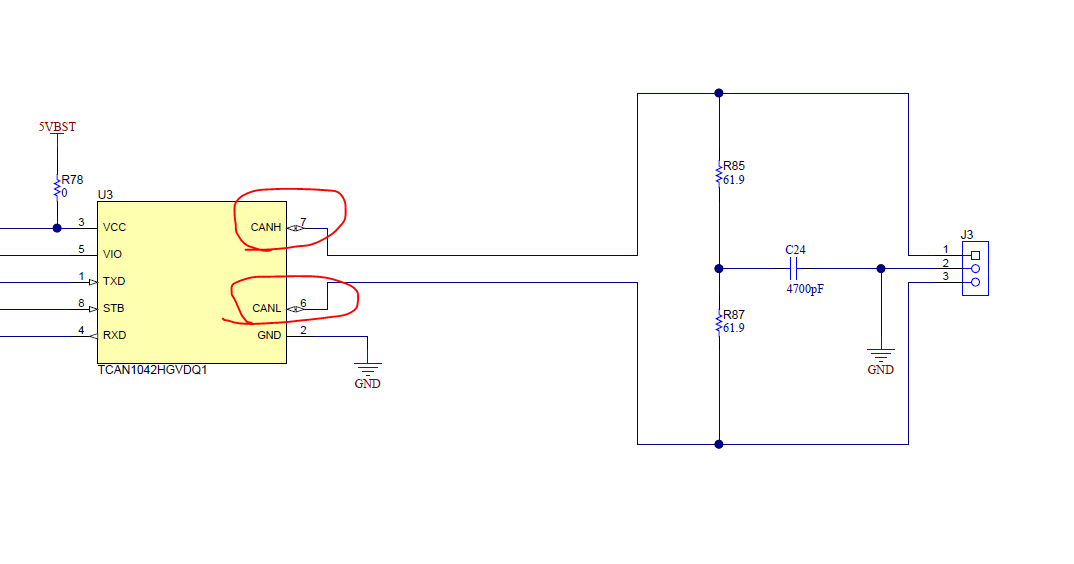

Should CANH and CANL be differential line setting?

If yes, is the characteristic impedance of differential line equal to 120 ohm(each line = 60 ohm)?

0 Eric Hackett over 6 years ago in reply to Lukas Liao

TI__Guru 74292 points

Lukas,

You are very welcome.

Yes, the CANH and CANL traces need to be differential in the layout, and the characteristic impedance should be 60 ohms for each line. Your thinking is correct.

Please let me know if you have any other questions.

Regards,
