TPD4E004: ESD device selection for USB application

Zoey Wei

Genius 10611 points

Part Number: TPD4E004
Other Parts Discussed in Thread: ESD122, ESD341, TPD1E05U06, STRIKE

Tool/software:

Hi Team,

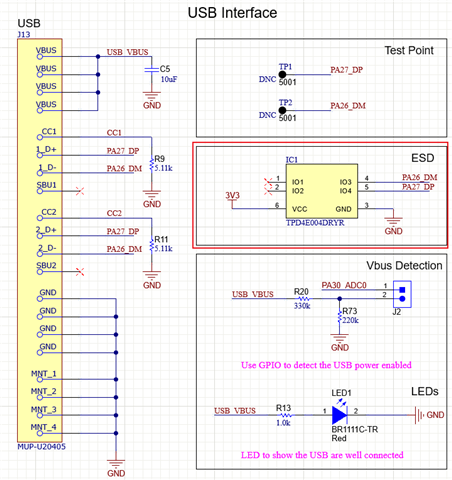

I am working on EVM schematic designing currently.

And regarding USB ESD protection, is there any recommendation of ESD device for USB D+ and D-?

Regards,

Zoey

1 month ago

0 Chris Pui 1 month ago

TI__Intellectual 1320 points

Hi Zoey,

For the D+/- lines we recommend ESD122 as a 2-channel option and ESD341 as a single-channel option. Both options will be able to support the data speeds of the lines and come in compact packages to save board space.

Please let me know if you have any more questions.

Best,

Chris

0 Zoey Wei 1 month ago in reply to Chris Pui

TI__Genius 10611 points

Hi Chris,

Thanks for your reply. I see there is a typical application diagram in ESD431, which is using ESD341 and TOD1E05U06. May I know what's the difference between these two devices?

Regards,

Zoey

+1 Chris Pui 1 month ago in reply to Zoey Wei

TI__Intellectual 1320 points

Hi Zoey,

TPD1E05U06 is a 5.5V device, while ESD341 is a 3.6V device.

TPD1E05U06 is seen in this diagram because the CEC, Utility, DDC, and Hotplug lines of HDMI operate at 5V.

Best,

Chris

0 Zoey Wei 1 month ago in reply to Chris Pui

TI__Genius 10611 points

Hi Chris,

Got it!

And for ESD341 device, i will have two vias of D+ and D- from the top layer to bottom layer in my PCB layout.

Should vias need to be placed as close as the pad of ESD device? Is there any suggestions on layout?

Thanks,

Zoey

+1 Chris Pui 1 month ago in reply to Zoey Wei

TI__Intellectual 1320 points

Hi Zoey,

Best practice is to try and place the ESD device as close to the USB connector as possible, and try to have it placed before the via. Placing the ESD device on the opposite side of the board from the source of the strike can reduce the effectiveness of the protection.

We have an ESD protection layout guide here for more information: https://www.ti.com/lit/an/slva680a/slva680a.pdf?ts=1753976093580&ref_url=https%253A%252F%252Fwww.google.com%252F

Best,

Chris
